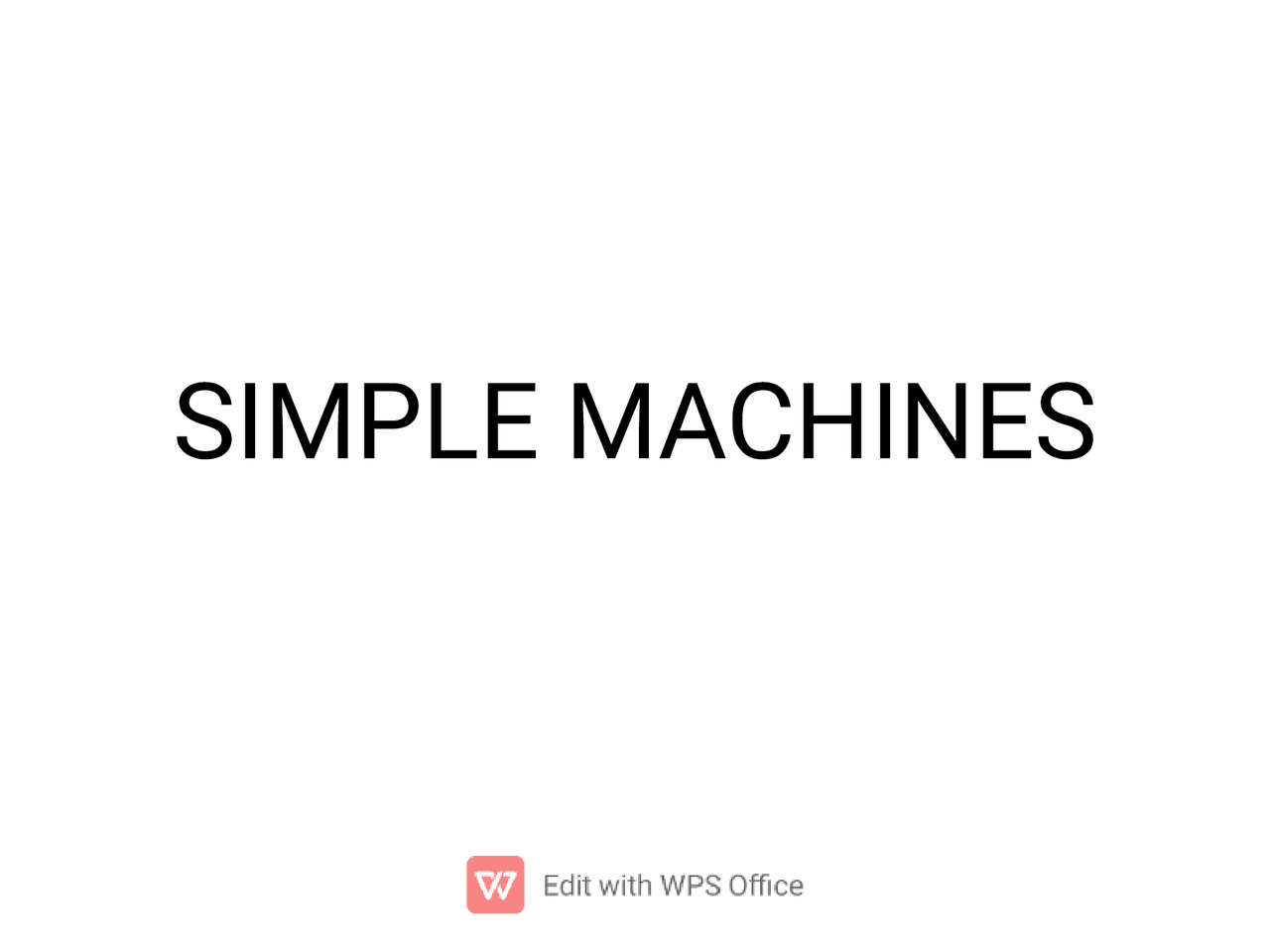

SIMPLE MACHINES
Simple machine
Device that helps to lift heavy loads by applying small effort Eg lever, screw jack, wheel and axle, inclined plane, pulley etc
Velocity ratio
- (^) Distance moved by effort / distance moved by load
Mechanical efficiency
Efficiency. = Out out / input = Load × distance moved by load/ effort × distance moved by effort = MA/ velocity ratio
Ideal machine
It is the one having efficiency equal to 100% Or machine having mechanical advantage equal to velocity ratio
Reversible machine
Removal of effort while lifting results in lowering the load Efficiency will be greater than or equal to 50% Eg- pulley used for lifting water
- (^) 1. Calculate MA, VR and efficiency of the machine , if the machine is having a mass of 120 kg is lifted to a height of 5mby a force of 60kg moving 15m?
- (^) Calculate the applied force if a load of 400kg is lifted by a machine having an efficiency of 72% given the velocity ratio as 6?
- (^) In a lifting machine and effort of 500N is to be moved by a distance of 20m to raise a load of 10000N by a distance of 0.8m. Determine VR, MA and efficiency?
Load arm- Distance from point of load to fulcrum Effort Arm- distance from effort to fulcrum
Principle of lever
- (^) Load× load arm= Effort × effort arm
