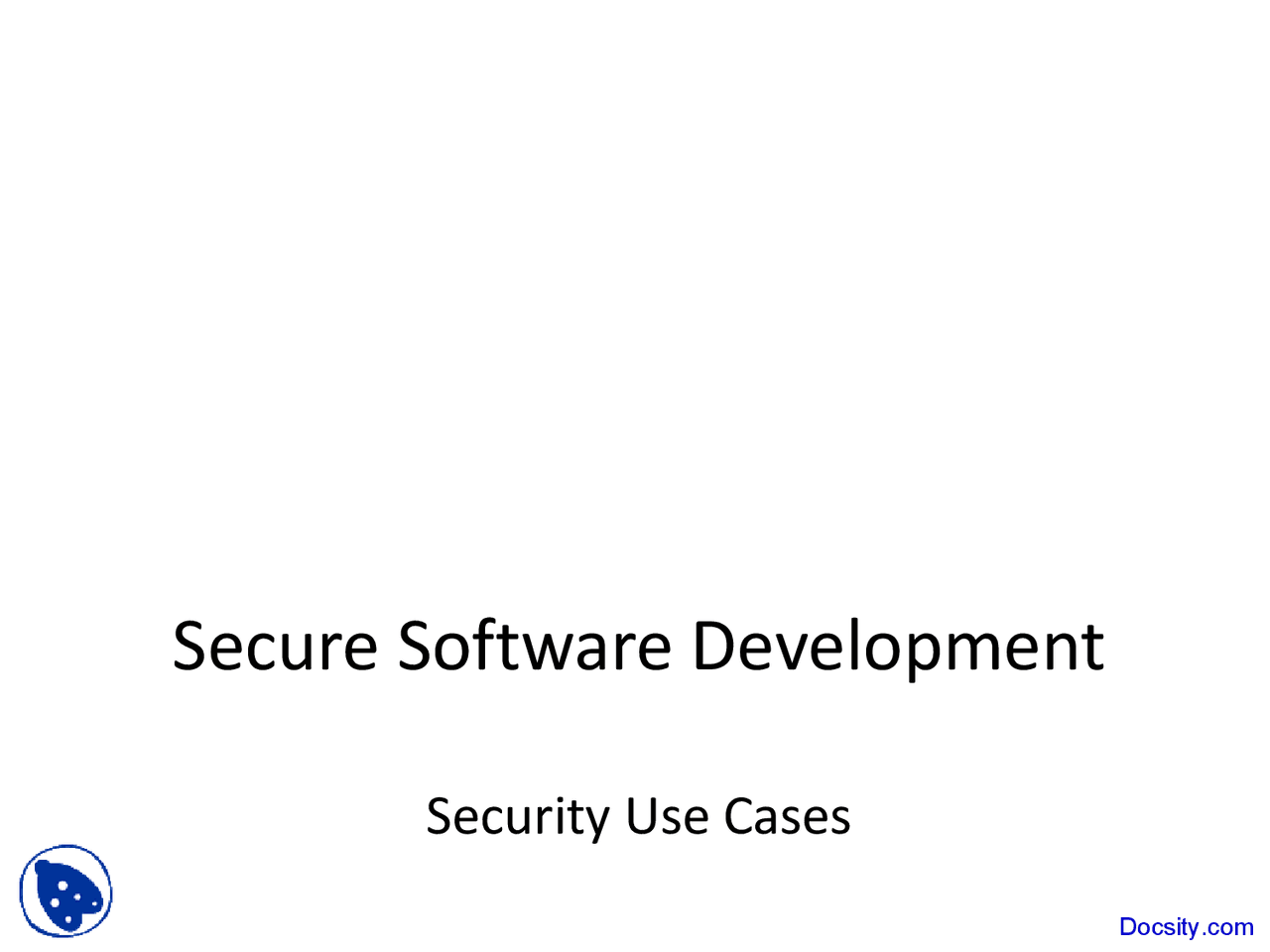

Secure Software Development

Security Use Cases

Application of Touchpoints

Requirement and Use cases

Architecture and Design Test Plans^ Code^

Tests and Test Results

Feedback from the Field

5. Abuse cases 6. Security Requirements 2. Risk Analysis

External Review

4. Risk-Based Security Tests 1. Code Review (Tools) 2. Risk Analysis 3. Penetration Testing 7. Security Operations

SecureUML

• Lodderstedt, Basin, and Doser

• Role-Based Access Control, MAC

• Use UML to specify access control

• Security is “horizontal” to software

development

• Ad-hoc and “after-the-development” security

integration is error prone, can be costly, and

may have negative impact

SecureUML

• Model-driven software development integrated with

security

• Advantages:
  • Security is integrated during software design, using high- level of abstraction
  • Modeling information can be used to detect design errors and verify correctness
• Limitations: need precise semantics of modeling

language for security assurance

UML Elements

• Actors

• Business processes

• Logical components

• Activities

• Programming language statements

• Database schemas

• Reusable software components

UML Diagrams

Source: Wikipedia, http://en.wikipedia.org/wiki/Unified_Modeling_Language

RBAC

• Intuitive and easy to administer

• Well established and supported by a large

number of software platform

• Limitation: expressing access conditions based

on system state  Authorization Constraints

(Object Constraint Language)

RBAC 3

U

Users

R

Roles

P

Permissions

S^.

Sessions

User assignment

Permission assignment

Constraints

Lecture 17^13

Mandatory Access Control Security Labels: (A,C) , where A: total order, e.g., Top-Secret > Secret > Public C: domain (subset), e.g., subsets of the set {5, 7} are: {5,7}, {5}, {7}, {} and {5,7} ⊇ {5,7}|{5}|{7}|{}, {5} ⊇{5}|{}, {7}⊇{7}|{}, {} ⊇{} but {7} NOT ⊇ {5} Dominance (≥): label l=(A,C) dominates l’=(A’,C’) iff A ≥ A’ and C ⊇ C’ e.g., (confidential,{student-info}) ≥ (public,{student-info}) BUT

(confidential, {student-info}) NOT ≥ (public,{student-info, department-info})

Lecture 17^14

Bell-LaPadula Axioms

• Simple-security property : a subject s is allowed to read an object o only if the security label of s dominates the security label of o - No read up - Applies to all subjects
• *-property : a subject s is allowed to write an object o only if the security label of o dominates the security label of s - No write down - Applies to un-trusted subjects only

Model Driven Architecture

Model Driven Security

Model Driven Architecture

Source: D. Basin et a., ACM Trans. On Software Engineering and Methodology, 15(1), 2005

Model Driven Security

• Security modeling

language

• System design modeling

language

• Dialect: connection

point for integrating

security and system

models

Source: D. Basin et a., ACM Trans. On Software Engineering and Methodology, 15(1), 2005

SecureUML

• Defines vocabulary for annotating UML-based

models with access control information

• Abstract syntax: formal definition, e.g., grammar
• Concrete syntax: notation (UML profile)
• Host language: a modeling language that uses

SecureUML

• SecureUML dialect: SecureUML specifications are

refined in the host language

• E.g., syntactic elements of the modeling language are transformed into constructs of the target platform

Need capability to combine sub-expressions from

different languages!
