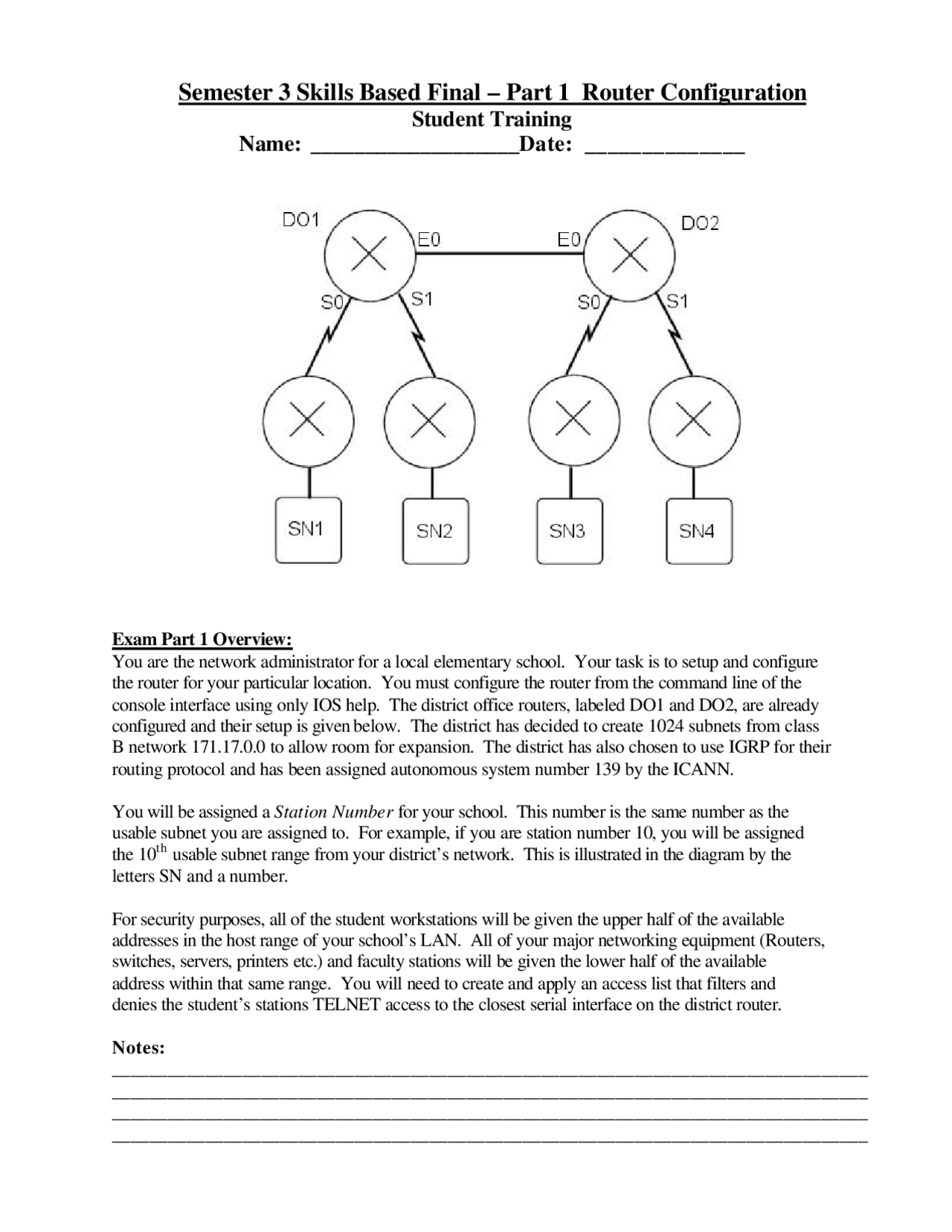

Semester 3 Skills Based Final – Part 1 Router Configuration
Student Training
Name: ___________________Date: ______________
Exam Part 1 Overview:
You are the network administrator for a local elementary school. Your task is to setup and configure
the router for your particular location. You must configure the router from the command line of the
console interface using only IOS help. The district office routers, labeled DO1 and DO2, are already
configured and their setup is given below. The district has decided to create 1024 subnets from class
B network 171.17.0.0 to allow room for expansion. The district has also chosen to use IGRP for their
routing protocol and has been assigned autonomous system number 139 by the ICANN.
You will be assigned a Station Number for your school. This number is the same number as the
usable subnet you are assigned to. For example, if you are station number 10, you will be assigned
the 10th usable subnet range from your district’s network. This is illustrated in the diagram by the
letters SN and a number.
For security purposes, all of the student workstations will be given the upper half of the available
addresses in the host range of your school’s LAN. All of your major networking equipment (Routers,
switches, servers, printers etc.) and faculty stations will be given the lower half of the available
address within that same range. You will need to create and apply an access list that filters and
denies the student’s stations TELNET access to the closest serial interface on the district router.
