CSE 466
Critical Systems Engineering
Slide 1

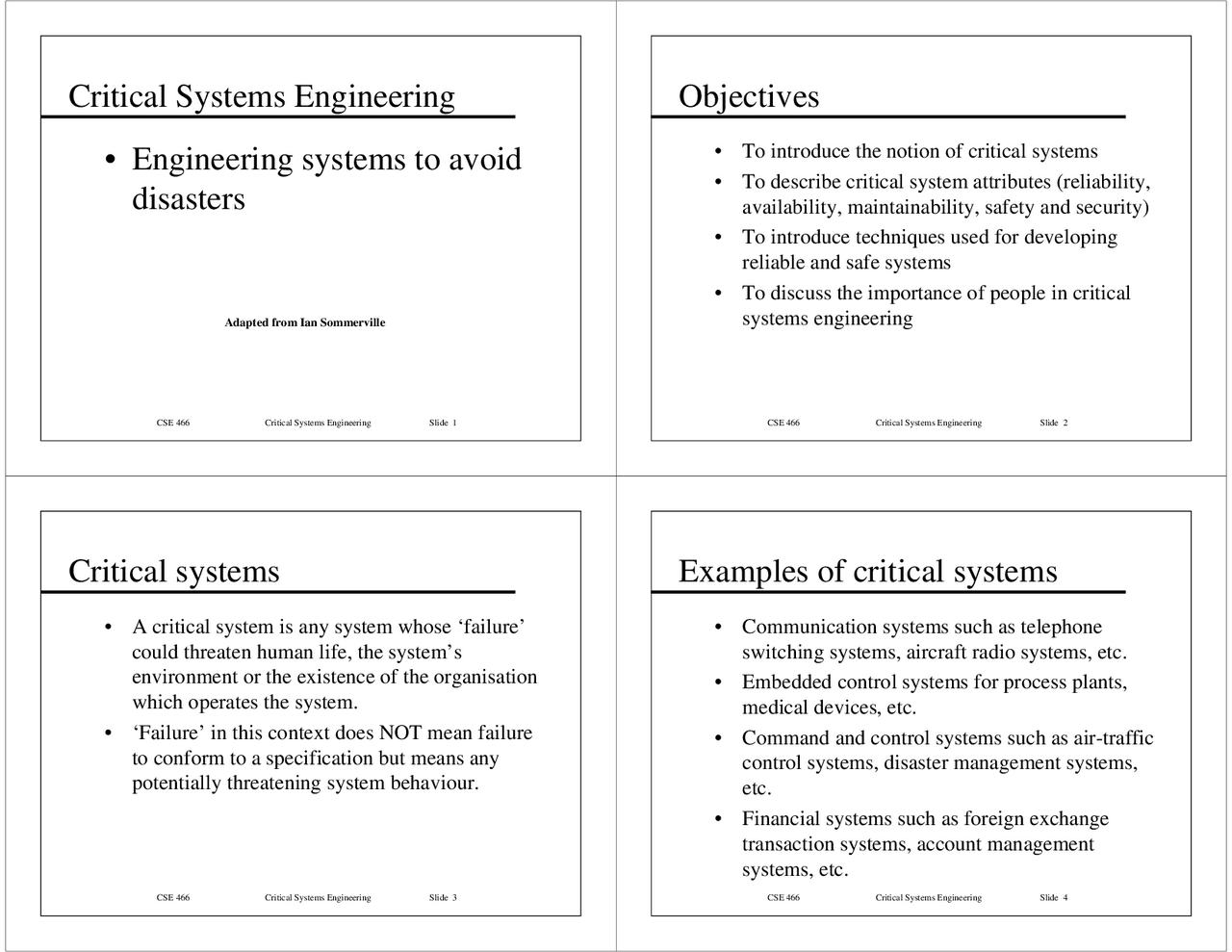

Critical Systems Engineering
• Engineering systems to avoid
disasters
Adapted from Ian Sommerville
CSE 466
Critical Systems Engineering
Objectives
•^
To introduce the notion of critical systems
-^
To describe critical system attributes (reliability,availability, maintainability, safety and security)
-^
To introduce techniques used for developingreliable and safe systems
-^
To discuss the importance of people in criticalsystems engineering
CSE 466
Critical Systems Engineering
Slide 3
Critical systems
•^
A critical system is any system whose ‘failure’could threaten human life, the system’senvironment or the existence of the organisationwhich operates the system.
-^
‘Failure’ in this context does NOT mean failureto conform to a specification but means anypotentially threatening system behaviour.
CSE 466
Critical Systems Engineering
Examples of critical systems
•^
Communication systems such as telephoneswitching systems, aircraft radio systems, etc.
-^
Embedded control systems for process plants,medical devices, etc.
-^
Command and control systems such as air-trafficcontrol systems, disaster management systems,etc.
-^
Financial systems such as foreign exchangetransaction systems, account managementsystems, etc.
CSE 466
Critical Systems Engineering
Slide 5
Critical systems usage
•^
Most critical systems are now computer-basedsystems
-^
Critical systems are becoming more widespreadas society becomes more complex and morecomplex activities are automated
-^
People and operational processes are veryimportant elements of critical systems - theycannot simply be considered in terms of hardwareand software
CSE 466
Critical Systems Engineering
Critical systems failure
•^
The cost of failure in a critical system is likely toexceed the cost of the system itself
-^
As well as direct failure costs, there are indirectcosts from a critical systems failure. These maybe significantly greater than the direct costs
-^
Society’s views of critical systems are not static -they are modified by each high-profile systemfailure
CSE 466
Critical Systems Engineering
Slide 7
Criticality attributes
•^
Reliability•^
Concerned with failure to perform to specification
•^
Availability•^
Concerned with failure to deliver required services
•^
Maintainability•^
Concerned with the ability of the system to evolve
•^
Safety•^
Concerned with behaviour which directly or indirectly threatenshuman life
•^
Security•^
Concerned with the ability of the system to protect itself
CSE 466
Critical Systems Engineering
Reliability
•^
Attribute concerned with the number of times asystem fails to deliver specified services.Difficult to define in an intuitive way
-^
Can’t be defined without defining the context ofuse of the system
-^
Metrics used•^
MTTF - Mean Time to Failure. Time between observed systemfailures
-^
ROCOF - Rate of occurrence of failures. Number of failures ina given time period
CSE 466
Critical Systems Engineering
Slide 13
Critical systems development
•^
Critical systems attributes are NOT independent -the systems development process must beorganised so that all of them are satisfied at leastto some minimum level
-^
More rigorous (and expensive) developmenttechniques have to be used for critical systemsdevelopment because of the potential cost offailure
CSE 466
Critical Systems Engineering
Developing reliable systems
•^
Reliable systems should be ‘fault-free’ systemswhere ‘fault-free’ means that the system’sbehaviour always conforms to its specification
-^
Systems which are ‘fault-free’ may still failbecause of specification or operational errors
-^
The costs of producing reliable systems growsexponentially as reliability requirements areincreased. In reality, we can never be sure that wehave produced a ‘fault-free’ system
CSE 466
Critical Systems Engineering
Slide 15
System faults and failures
•^
Faults and failures are not the same thingalthough the terms are often used fairly loosely
-^
A
fault
is a static characteristic of a system such
as a loose nut on a wheel, an incorrect statementin a program, an incorrect instruction in anoperational procedure
-^
A
failure
is some unexpected system behaviour
resulting from a fault such as a wheel falling offor the wrong amount of a chemical being used ina reactor
CSE 466
Critical Systems Engineering
Reliability achievement
•^
Achieving systems reliability is generally basedon the notion that system failures may be reducedby reducing the number of system faults
-^
Fault reduction techniques•^
Fault avoidance
-^
Fault detection
•^
Alternatively, reliability can be achieved byensuring faults do not result in failures•^
Fault tolerance
CSE 466
Critical Systems Engineering
Slide 17
Fault avoidance
•^
The use of development techniques whichreduces the probability that faults will beintroduced into the system•^
Certified development process•^
Use a process which is known to work
-^
Formal specification of the system•^
Discovers anomalies before design
-^
Use of ‘safe’ software development techniques•^
Avoidance of error-prone language constructs• Use of a programming language (such as Ada) which can detectmany programming errors at compile-time
-^
Certified sub-contractors
CSE 466
Critical Systems Engineering
Fault detection
•^
The use of techniques in the developmentprocess which are likely to detect faults before asystem is delivered•^
Mathematical correctness arguments
-^
Measurement of test coverage
-^
Design/program inspections and formal reviews
-^
Independent verification and validation
-^
Run-time monitoring of the system
-^
Back-to-back testing
CSE 466
Critical Systems Engineering
Slide 19
Fault tolerance
•^
In critical situations, systems must befault tolerant.
-^
Fault tolerance means that the system cancontinue in operation in the presence of systemfaults
-^
Even if the system has been demonstrated tobe fault-free, it must also be fault tolerant asthere may be specification errors or the validationmay be incorrect
CSE 466
Critical Systems Engineering
Triple-modular redundancy
•^
There are three replicated identical componentswhich receive the same input and whose outputsare compared
-^
If one output is different, it is ignored andcomponent failure is assumed
-^
Based on most faults resulting from componentfailures rather than design faults and a lowprobability of simultaneous component failure
-^
Applied to both hardware and (in a differentform) software systems
CSE 466
Critical Systems Engineering
Slide 25
Definitions
•^
Mishap (or accident)•^
An unplanned event or event sequence which results in humandeath or injury. It may be more generally defined as coveringdamage to property or the environment
•^
Incident•^
A system failure which may potentially result in an accident
•^
Hazard•^
A condition with the potential for causing or contributing to anincident
CSE 466
Critical Systems Engineering
Examples
•^
Car crash resulting from a brake system failure•^
Hazard - faulty brake control software
-^
Incident - car fails to brake when instructed by driver
-^
Accident - car leaves road and crashes
•^
Incorrect drug dosage administered due to faultyoperating instructions•^
Hazard - nurse follows a set of faulty operating instructions fora drug delivery system
-^
Incident - incorrect dosage of drug computed by system
-^
Accident - incorrect dosage of drug delivered to patient
CSE 466
Critical Systems Engineering
Slide 27
Safety achievement
•^
Safety can be achieved by•^
Avoiding hazards - developing the system so that hazardousstates do not arise. Proving a braking system meets itsspecification.
-^
Ensuring hazards do not result in incidents - addingfunctionality to the system to detect and correct hazards. Addingfault tolerance to the braking system software.
-^
Avoiding accidents by adding features to systems which meanthat incidents do not result in an accident. Providing a backupbraking system.
-^
Reducing the chances that accidents will result in damage topeople by adding protection to a system. Adding seat belts andairbags.
CSE 466
Critical Systems Engineering
Safety and reliability
•^
Not the same thing. Reliability is concerned withconformance to a given specification and deliveryof service
-^
The number of faults which can cause safety-related failures is usually a small subset of thetotal number of faults which may exist in asystem
-^
Safety is concerned with ensuring system cannotcause damage irrespective of whetheror not it conforms to its specification
CSE 466
Critical Systems Engineering
Slide 29
Designing for safety
•^
System design should always be based around thenotion that no single point of failure cancompromise system safety. Systems shouldalways be able to tolerate one failure
-^
However, accidents usually arise because ofseveral simultaneous failures rather than a failureof a single part of the system
-^
Anticipating complex sub-system interactionswhen these sub-systems are failing is verydifficult
Safety requirementsspecification Functionalrequirementsspecification
Safety-integrityrequirementsspecification
Hazardanalysis
Riskassessment
Designation ofsafety-critical systems
Validationplanning
Design andimplementation
Verification
Safetyvalidation Operation andmaintenance
The safety life cycle
CSE 466
Critical Systems Engineering
Slide 31
People and critical systems
•^
People and associated operational processes areessential elements of critical systems
-^
People are probably the most important singlesource of failure in critical systems BUT they arealso the most effective mechanism we have forincident/accident avoidance
-^
Human factors are significant in the design, thedevelopment and the operation of critical systems
CSE 466
Critical Systems Engineering
Slide 32
Human factors in operations
•^
Many (the majority?) of systems failures are dueto ‘errors’ made by operators of the system(pilots, controllers, signallers, etc.)
-^
However, it is arguable whether these operatorsshould be blamed for these errors - in many casesthey are a result of poor system design where theoperational situation was not understood by thesystem designers
CSE 466
Critical Systems Engineering
Slide 37
Key points
•^
Safety-critical systems are systems whose failurecan damage people and the system’s environment
-^
Safety and reliability are not the same thing -reliable systems can be unsafe
-^
Process issues (a safety life cycle) are veryimportant for safety-critical systems
-^
Human, social and organisational factors must betaken into account in the development of criticalsystems
