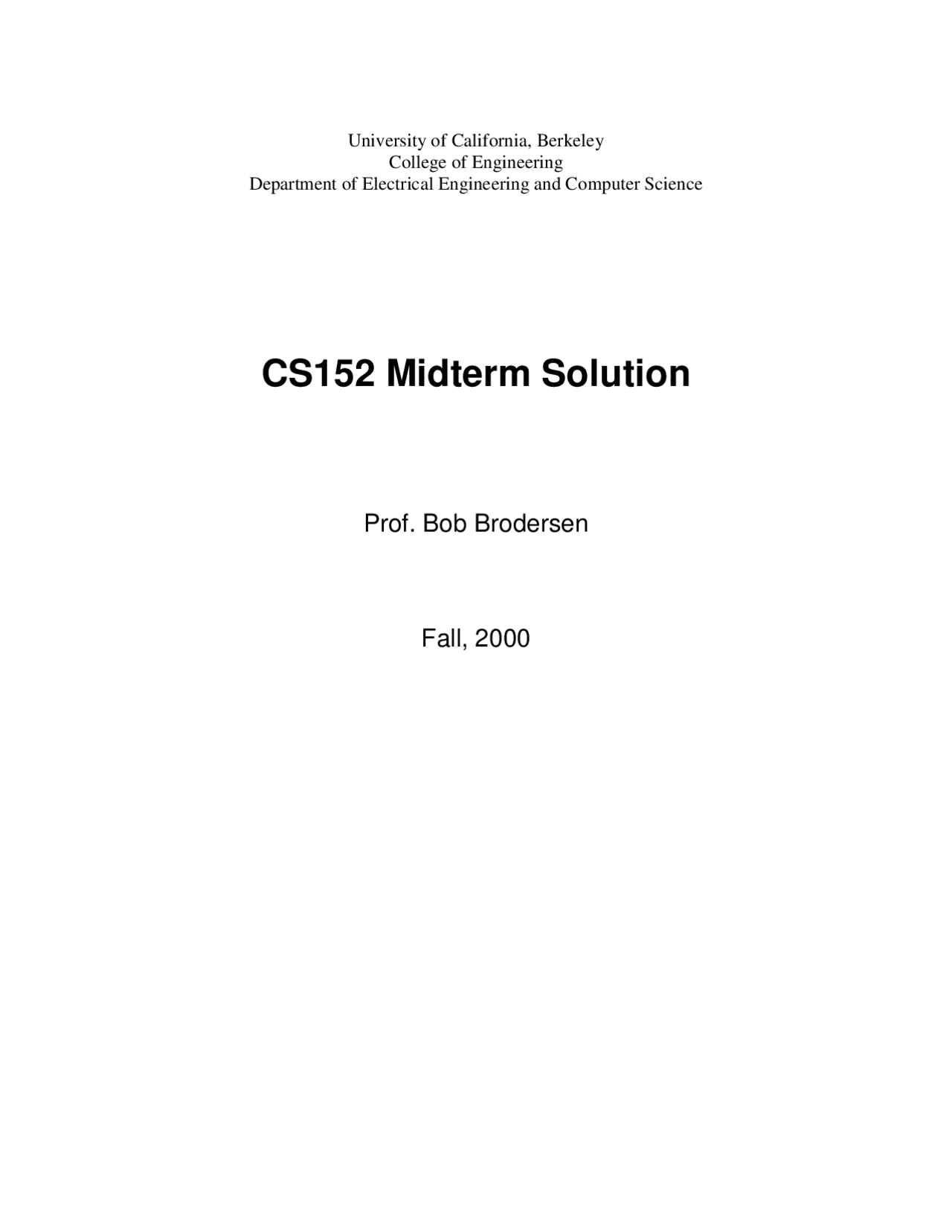

University of California, Berkeley

College of Engineering

Department of Electrical Engineering and Computer Science

CS152 Midterm Solution

Prof. Bob Brodersen

Fall, 2000

Problem 1: Single-cycle Processor and Performance Evaluation

We have a single cycle processor as we learned in class. Besides the instructions R-format, lw,

sw, and beq that the processor already implemented, the designer figured that certain software

does the following instructions extensively

cs $t $s1 $s2; cslw $t $s1 $s2; cslwcs $t $s1 $s.

Besides the usual PC handling and instruction fetch as before,

• the cs instruction is described as:

$t <= max($s1, $s2)

• The cslw does the following:

$t <=memory [ max($s1,$s2)]

• The cslwcs instruction the following:

$t <= max{$s1, memory[ max ($s1, $s2)]}

So now you see that cs and lw in above names stand for compare_select and loadword.

The designer plans to modify the datapath and control signal based on the processor showed in

next page. It’s a textbook processor with some missing blocks and wiring to fill in. The

components he can use are any of the blocks already present in the design and the generalized

GALU (showed above) with an additional output GREATER that equals to 1 if Input1-Input

>0, and equals to 0 if Input1-Input2 =< 0.

input

Input 2

zero

Greater

output

GALU

ALUcontrol

box A (^) B C box

b). Fill in the control table below with X, 0 or 1. Add in new column(s) if you need new control

signal(s) ( you may not need all three columns)

c). Please point

out the critical

path , estimate

for him the

critical path

delay in ns , and hence determine the fastest clock rate in MHz. Finally use a program given

below to evaluate the processor. Use the following delay parameters (ignore hold time and

regard clock-to-Q time as the delay, consider setup time for register files write delay):

• ALU or GALU, delay = 15 (ns)
• Sign/zero extender, delay = 3(ns)
• 2-1 Mux, delay = 2 (ns)
• Memory, delay (both write and read) = 10 (ns)
• Register, delay = 1 (ns)
• Register files, read delay =10 (ns), write setup time=10 (ns)

All other components’ delays are ignored.

i) Critical path is (write down the components’ names in order):

See below

ii) Critical path delay is (ns)? and fastest clock rate in Mhz?

The original processor has delay = loadword delay = PC+ instruction mem + register file +

mux + ALU+data memory + mux+ register write =1+10+10+2+15+10+2+10=60 ns

Now have additional 2 mux + 1GALU+1mux (ignore and delay) = 51+ 4+ 15+2=81 ns

The fastest CLK Rate= 1/81ns= 1000/81 MHz

(note that if you used different way in part a), your result here will be different as well, which is

OK)

iii) Now use a program to evaluate the performance of this new processor. The program

has 10% lw instructions, 10% beq, 10%sw, 20% R-format, 25% cs, 15% cslw,

Instruction Alusrc Memto Reg

Reg Write

Mem Read

Mem Write

NewC1 NewC

Sw 1 X 0 0 1 0 0 R-format 0 0 1 0 0 0 0 cslw 0 1 1 1 0 1 0 cslwcs 0 1 1 1 0 1 1

10%cslwcs. The program contains 1,000,000 instructions in total. How much time is

needed to run this program?

With this new processor, the time = 1,000,000 * 81ns = 81ms

d). Please write down an as-simple-as-possible decomposition of the cslwcs instruction in

terms of cs,cslw, lw, sw and/or R-format instructions. Thus the original processor can be

modified only to run additional cs and cslw in one cycle and use multi-cycles for cslwcs.

Estimate the critical path delay for this processor, and hence evaluate the time needed to run

the same program in part c-iii.

i) cslwcs $t $s1 $s2 ˇ (in terms of cs, cslw, lw, sw and R-format)

cslw $temp $s1 $s

cs $t $s1 $temp

ii) This time worst case delay =

60+ 2mux=64ns,

iii) so the new processor need to use ?(ms) to run the program

(1,000,00010%+1,000,000)64 = 70.4 ms,

A) [10 points] Microprogram the following instructions by filling in the table. The SrcA and SrcB fields specify which signals will be assigned to BusA and BusB, respectively. The WrDest field specifies what component is written at the end of the cycle. This can be any one of the state registers (A and B can be paired together in one cycle), the register file, or memory. It is implied that all other components will not be written accidentally. The Sequence field behaves as presented in class: it specifies whether the microprogram should return to the fetch stage to start a new macroinstruction, dispatch to a location specific to the current opcode, or proceed in order. You should ignore the BEQ instruction for now – it is only provided for part (C). Hint: you do not need to fill all the rows.

μAddr Instruction^ SrcA^ SrcB^ ALUOp^ WrDest^ Sequence

00 Fetch PC Mem – IR Next

01 Decode – – – A,B Dispatch 02 ADD A B Add S Next 03 – S – RegFile Fetch 04 05 06 ADDI A SX Add S Next 07 – S – RegFile Fetch 08 09 0A LW A SX Add S Next 0B S – – M Next 0C – M – RegFile Fetch 0D 0E SW A SX Add S Next 0F S B – Mem Fetch 10 11

12 BNE A B Sub –

If ALUzero Then Next Else Fetch 13 PC SX Add PC* Fetch

Note that for the LW instruction, given the way the problem was defined it was acceptable to

have the last two cycles merged into one. Therefore, if your answer had the memory access and

write back both occur in the fourth cycle, you should not have lost points.

B) [10 points] One of the major drawbacks to using large buses is the massive loading caused by so many components all connected to the same node. To approximate the effect of the increased loading, assume that it takes an additional 10ns just to drive a signal on a bus (in other words, assume the hollow arrowheads in the datapath schematic have a delay of 10ns). Each component delay is copied below for your reference (you’ll notice they all match the other problems). Neglecting the BNE instruction , what is the maximum clock frequency of this processor? Registers (clk-to-Q) 1ns Register File 10ns Extender 3ns ALU 15ns Memory 10ns nPC Logic 10ns

The critical path of this processor is during instruction fetch, where the buses must be accessed twice, along with the memory and register delay. The minimum cycle time is therefore Time = clk-to-Q + bus_access + memory + bus_access = 1 + 10 + 10 + 10 = 31 ns

The maximum clock frequency is the inverse of time, such that Freq = 1/Time = 1/31 ns ≈ 32.258 MHz

Problem 4: MIPS 5 Stage Pipelined Processor (30 points) The processor shown on the next page is one implementation of a standard MIPS 5 stage pipelined processor. The specifications of the processor are as following: Five pipeline stages: IF, ID, EX, MEM, WB The processor does not have forwarding nor hazard implemented yet. Control signal are represented by dotted lines. Control bus value represents the actual control bits from top down. Control signal values are in binary format. Data signal values are in decimal value. RegisterFile writes in the first half of the cycle , and reads in the second half Both instruction and data memory read asynchronously; data memory writes synchronously. Both memories are byte addressed. Data memory size is 16 words and only the least significant bits are used to address the memory. Each component has been labeled with worst-case delay. Registers only have clock-to-Q delay, zero setup/hold time. Assume no clock skew. The diagram of the processor also includes a snapshot of the processor at the beginning of the cycle, with necessary signal values labeled. Table 1 & 2 shows the contents of the Register file, Data memory at the snapshot time. Assume register file and memory have been correctly updated in the previous cycle, but all writes in the current cycle have not taken place yet. Table 3 shows the ALU Control truth table. MIPS R3000 Opcode table is also attached at the end.

A) How many branch delay slot(s) does this processor have? (4 points)

3

B) What is the minimum clock period of the processor? (4 points)

1+6+15 = 22 ns

C) In MIPS assembly language, determine exactly what instruction is being executed in ID stage? What’s the result? i.e., register file or data memory content changes. (6 points)

Sub $9, $7, $ $9 = 24 – 8 = 16 Note: WB stage write to $7 with value 24

D) In MIPS assembly language, determine exactly what instruction is being executed in EX stage? What’s the result? i.e., register file or data memory content changes. (6 points)

Lw $7, 16432($0) Note: it’s the same word address as 48($0) $7 = Mem(48/4) = 32 Note: MEM stage SW to address 48 with value 32

E) Now implement only the hazard detection unit without forwarding, such that from the software’s perspective, the processor has exactly one branch delay slot, exactly one load delay slot, and all hazards should be resolved on hardware level. You are only allowed to add write enable control signals to any of the five pipeline registers, along with necessary control logics. (10 points) i. In order to stall the pipeline, some of the five pipeline registers should have write enable control signal. Filling in the following table. (‘Y’ means yes needed, ‘N’ means not necessary) PC IF/ID ID/EX EX/MEM MEM/WB

Need Write En? Y Y N N N

ii. Describe in words, or pseudocode, under what condition should each of the pipeline register be write disabled, and for how many processor cycles in each case. Pipeline Register

Write Disable Condition

PC If ID detects BCH, disable for 2 cycles; If ID detects LW, disable for 1 cycles;

If EX instruction writes back to the same register as ID instruction uses, disable

for 2 cycles;

If MEM instruction writes back to the same register as ID instruction uses, disable for 1 cycles;

IF/ID Same as PC disable conditions

ID/EX Never

EX/MEM Never

MEM/WB Never
