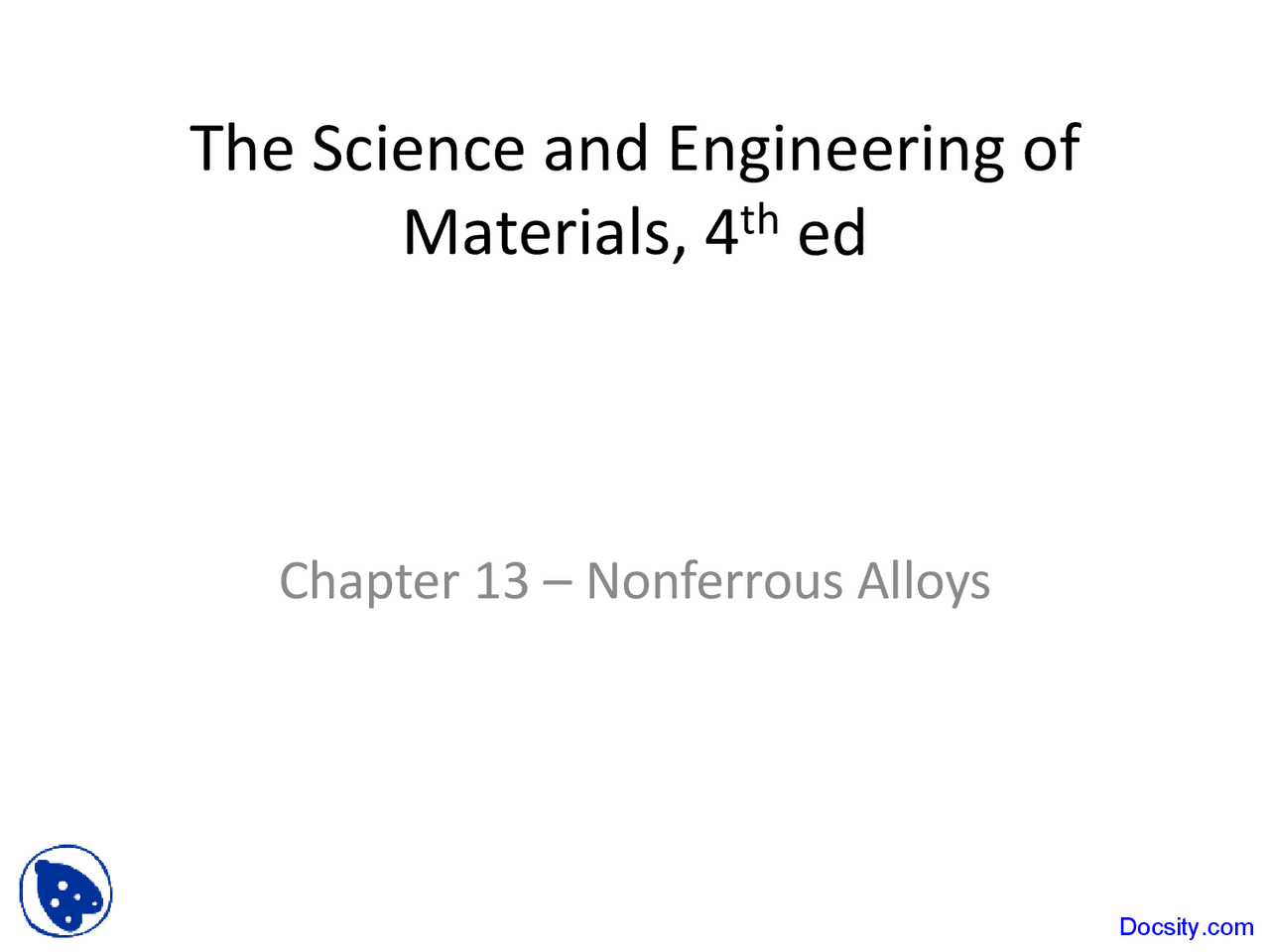

The Science and Engineering of

Materials, 4

th

ed

Chapter 13 – Nonferrous Alloys

Objectives of Chapter 13

• Explore the properties and applications of Cu, Al, and Ti

alloys in load-bearing applications.

• Hall-Heroult process - An electrolytic process by which aluminum is extracted from its ore.
• Temper designation - A shorthand notation using letters and numbers to describe the processing of an alloy. H tempers refer to cold-worked alloys; T tempers refer to age-hardening treatments.

Section 13.

Aluminum Alloys

©2003 Brooks/Cole, a division of Thomson Learning, Inc. Thomson Learning

is a trademark used herein under license.™

Figure 13. Production of aluminum in an electrolytic cell.

©2003 Brooks/Cole, a division of Thomson Learning, Inc. Thomson Learning™ is a trademark used herein under license.

Figure 13.3 Portion of the aluminum-magnesium phase diagram.

Figure 13.4 (a) Sand-cast 443 aluminum alloy containing coarse silicon and inclusions. (b) Permanent-mold 443 alloy containing fine dendrite cells and fine silicon due to faster cooling. (c) Die-cast 443 alloy with a still finer microstructure ( × 350). ( From ASM Handbook, Vol. 7, (1972), ASM International, Materials Park, OH 44073 .)

Example 13.1 SOLUTION

a. Load = F = σy × A = 70.000 ( π /4) (0.5 in.) 2 = 13,744 lb

b. The yield strength of the aluminum alloy is 36,000 psi. Thus: A = ( π/ 4)d^2 = F/ σy = 13,744/36,000 = 0.38 in.^2 d = 0.697 in. Density of steel = ρ = 7.87 g/cm^3 = 0.284 lb/in.^3 Density of aluminum = ρ = 2.70 g/cm^3 = 0.097 lb/in 3

c. Weight of steel = Al ρ = ( π /4)(0.5in) 2 (12)(0284) = 0.669 lb/ft Weight of aluminum = Al ρ = ( π /4)(0.697) 2 (2) (12) (0.097) = 0.444 lb/ft Although the yield strength of the aluminum is lower than that of the steel and the cable must be larger in diameter, the aluminum cable weighs only about half as much as the steel cable. When comparing materials, a proper factor-of- safety should also be included during design.

Design a method for recycling aluminum alloys used for beverage cans.

Example 13.2 SOLUTION

One approach to recycling the cans is to separate the two alloys from the cans. The cans are shredded, then heated to remove the lacquer that helps protect the cans during use. We could then further shred the material at a temperature where the 5182 alloy begins to melt. The small pieces of 5182 can therefore be separated by passing the material through a screen. The two separated alloys can then be melted, cast, and rolled into new can stock.

An alternative method would be to simply remelt the cans. Once the cans have been remelted, we could bubble chlorine gas through the liquid alloy. The chlorine reacts selectively with the magnesium, removing it as a chloride. The remaining liquid can then be adjusted to the proper composition and be recycled as 3004 alloy.

Example 13. Design of an Aluminum Recycling Process

Design a casting process to produce automotive wheels having reduced weight and consistent and uniform properties.

Example 13.4 SOLUTION

Thixocasting process in which the material is stirred during solidification, producing a partly liquid, partly solid structure that behaves as a solid when no external force is applied, yet flows as a liquid under pressure. We would select an alloy with a wide- freezing range so that a significant portion of the solidification process occurs by the growth of dendrites. A hypoeutectic aluminum-silicon alloy might be appropriate. In the thixocasting process, the dendrites are broken up by stirring during solidification. The billet is later reheated to cause melting of just the eutectic portion of the alloy, and it is then forced into the mold in its semi-solid condition at a temperature below the liquidus temperature.

Example 13. Design of a Casting Process for Wheels

 Magnesium alloys are used in aerospace applications, high-speed machinery, and transportation and materials handling equipment.

 Instrument grade beryllium is used in inertial guidance systems where the elastic deformation must be minimal; structural grades are used in aerospace applications; and nuclear applications take advantage of the transparency of beryllium to electromagnetic radiation. Beryllium is expensive, brittle, reactive, and toxic.

Section 13.

Magnesium and Beryllium Alloys

 Blister copper - An impure form of copper obtained during the copper refining process.

 Applications for copper-based alloys include electrical components (such as wire), pumps, valves, and plumbing parts, where these properties are used to advantage.

 Brass - A group of copper-based alloys, normally containing zinc as the major alloying element.

 Bronze - Generally, copper alloys containing tin, can contain other elements.

Section 13.

Copper Alloys

©2003 Brooks/Cole, a division of Thomson Learning, Inc. Thomson Learning

is a trademark used herein under license.™

Figure 13. Binary phase diagrams for the (a) copper-zinc, (b) copper-tin, (c) copper- aluminum, and (d) copper- beryllium systems.

Design the heat treatment required to produce a high-strength aluminum-bronze gear containing 10% Al.

Example 13. Design of a Heat Treatment for a Cu-Al Alloy Gear

Figure 13.6 Binary phase diagrams for the (c) copper-aluminum

Example 13.6 SOLUTION

1. Heat the alloy to 950o^ C and hold to produce 100% β.
2. Quench the alloy to room temperature to cause β to transform to martensite, β ´ , which is supersaturated in copper.
3. Temper below 565o^ C; a temperature of 400 o^ C might be suitable. During tempering, the martensite transforms to α and γ 2. The amount of the γ 2 that forms at 400 o^ C is:
4. Cool rapidly to room temperature so that the equilibrium γ does not form.
