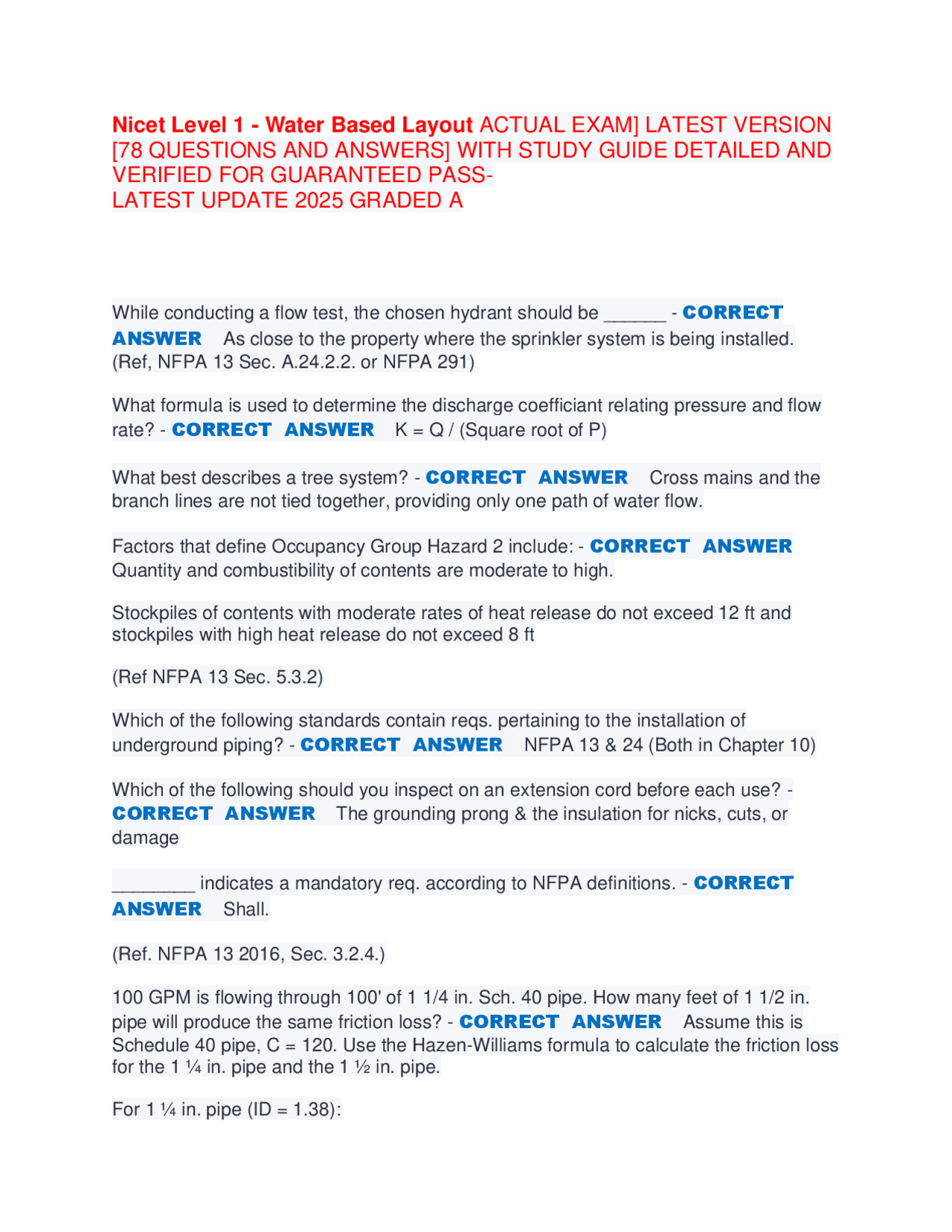

Nicet Level 1 - Water Based Layout ACTUAL EXAM] LATEST VERSION
[ 7 8 QUESTIONS AND ANSWERS] WITH STUDY GUIDE DETAILED AND
VERIFIED FOR GUARANTEED PASS-
LATEST UPDATE 2025 GRADED A
While conducting a flow test, the chosen hydrant should be ______ - CORRECT ANSWER As close to the property where the sprinkler system is being installed. (Ref, NFPA 13 Sec. A.24.2.2. or NFPA 291) What formula is used to determine the discharge coefficiant relating pressure and flow rate? - CORRECT ANSWER K = Q / (Square root of P) What best describes a tree system? - CORRECT ANSWER Cross mains and the branch lines are not tied together, providing only one path of water flow. Factors that define Occupancy Group Hazard 2 include: - CORRECT ANSWER Quantity and combustibility of contents are moderate to high. Stockpiles of contents with moderate rates of heat release do not exceed 12 ft and stockpiles with high heat release do not exceed 8 ft (Ref NFPA 13 Sec. 5.3.2) Which of the following standards contain reqs. pertaining to the installation of underground piping? - CORRECT ANSWER NFPA 13 & 24 (Both in Chapter 10) Which of the following should you inspect on an extension cord before each use? - CORRECT ANSWER The grounding prong & the insulation for nicks, cuts, or damage ________ indicates a mandatory req. according to NFPA definitions. - CORRECT ANSWER Shall. (Ref. NFPA 13 2016, Sec. 3.2.4.) 100 GPM is flowing through 100' of 1 1/4 in. Sch. 40 pipe. How many feet of 1 1/2 in. pipe will produce the same friction loss? - CORRECT ANSWER Assume this is Schedule 40 pipe, C = 120. Use the Hazen-Williams formula to calculate the friction loss for the 1 ¼ in. pipe and the 1 ½ in. pipe. For 1 ¼ in. pipe (ID = 1.38):
P friction loss = 4.52 x Q 1. c 1.85 x d 4. P friction loss = 4.52 x 100 1. 120 1.85 x 1.38 4. P friction loss = 0.672 psi/ft For 1 ½ in. pipe (ID = 1.61): P friction loss = 4.52 x Q 1. c 1.85 x d 4. P friction loss = 4.52 x 100 1. 120 1.85 x 1.61 4. P friction loss = 0.317 psi/ft Step #2: Determine the total friction loss for 100 gpm flowing through 100 ft. of 1 ¼ in. Schedule 40 black steel pipe: 100 ft. x 0.672 psi/ft = 67.2 psi Step #3: Determine the pipe length to produce the same friction loss in the 1 ½ in. pipe: y ft. x 0.317 psi/ft = 67.2 psi y = 67.2 ÷ 0. y = 212 ft. A basic contract: (choose all that apply) - CORRECT ANSWER Contains the names of the parties involved, References the contract documents, Discusses the work that is to be done, and Discusses start and completion dates.
Reference NFPA 13 2016, Section 10.4. If you are laying pipes under driveways, you must go down a minimum of 3 ft. However, you must be at least 1 ft. below the frost line. In this case that is 3 ½ ft. Ordinary Hazard is a term that specifies: - CORRECT ANSWER An occupancy classification, More combustibility than light hazard, and A system area limitation of 52,000 ft 2. Reference NFPA 13 2016, Sections 5.3 and 8.2.1. What type of temperature is required for a sprinkler installed 2ft above a heating duct? - CORRECT ANSWER Intermediate. Reference NFPA 13 2016, Table 8.3.2.5(a). A three screw ceiling flange is used to attach the hangers for 6 in. Sch. 40 pipe. If 1 3/4" lag screws are used, what is the maximum spacing for the hangers? - CORRECT ANSWER 10 ft. Reference NFPA 13 2016, Section 9.1.5.2.2 - when 2 in. screws cannot be used, 1 ¾ in. screws can be used if the maximum hanger spacing in 10 ft. The owners info cert. indicates the property to be protected will contain nitrate film. Which of the following is also req. to be provided? - CORRECT ANSWER Type, arrangement, location, and intended maximum quantities. Reference NFPA 13 2016, Figure A.23.1(b). Where the suction supply is under sufficient pressure to be of material value without the pump, the pump shall be installed with a _________, which shall be at least as large as the pipe size required for the discharge pipe. - CORRECT ANSWER Bypass. Reference NFPA 20 2016, Section 4.15.4. What is the temp. class and color code for a sprinkler located at a ceiling w/ a max temp of 150 degrees? - CORRECT ANSWER Intermediate, white. Reference NFPA 13 2016, Table 6.2.5.1. When conducting a hydrostatic flow test for a new fire sprinkler system, the test pressure should be _______ psi for ________ hours. - CORRECT ANSWER 200,
Reference NFPA 13 2016, Section 25.2.1.1.
Supplementary conditions of a contract contain which of the following: - CORRECT ANSWER Delay agreements, Time and pay schedules, and Addendums. Reference course content. Copper tube that has the greatest (largest0 inside diameter for 1 inch. nominal tube is: - CORRECT ANSWER Type M. Reference NFPA 13 2016, Table A.6.3.5. Calculate the equivalent length of 4 in. Schedule 40 Black steel pipe of a 90 degree long turn elbow - CORRECT ANSWER 6 ft. Per NFPA 13 2016, Table 23.4.3.1.1, we find the equivalent length for a 4 in. Schedule 40 Black steel pipe with a 90 0 long-turn elbow is 6 ft. Determine the maximum spacing permitted for an Extra Hazard hydraulically calculated system with a density less than 0.25 gpm/ft^2 - CORRECT ANSWER 15 ft. Reference NFPA 13 2016, Table 8.6.2.2.1(c) In water flow test using two hydrants, ______ pressure is the pressure at the hydrant where the water is not flowing. - CORRECT ANSWER Residual pressure. Reference NFPA 13 2016, Section A.24.2.2. NFPA 13 permits branchline hangers to be attached to metal roof decks if the pipe size doesnt exceed ____ inch(es) - CORRECT ANSWER 1 in. Reference NFPA 13 2016, Section 9.2.1.4.1. How more water can a (17/32) sprinkler deliver than a (1/2) sprinkler? - CORRECT ANSWER Solution #7: k ½ = 5. k 17/32 = 8 Percentage increase: 8 - 5.6 = 43%
Which of the following reqs. pertaining to the relief valve for a centrifugal pump is incorrect? - CORRECT ANSWER The relief valve shall only be hydraulically sized.
to displace the pumping fluid: - CORRECT ANSWER Positive Discplacement Pump Refrence NFPA 20 2016 Section 3.3.44.14. Which of the following sprinklers produces large water droplets and is listed for its capability to provide fire control of specific high-challenge fire hazards? - CORRECT ANSWER CMSA Sprinkler Refrence 13 2016 Section 3.6.4.2. A standpipe system with no permanently attached water supply that relies exclusively on the fire department connection to supply the system demand. - CORRECT ANSWER Manual Dry Reference NFPA 14 2016 Section 3.3.17.4. For corrosive water conditions, steel pipe on the suction side of the pump is required to be: - CORRECT ANSWER Galvanized or painted on the interior with a paint recommended for submerged surfaces Refrence NFPA 20 2016 Section 4.14.1.2. The distance between the bottom of the strainer and the bottom of the wet pit on a vertical shaft turbine pump should be: - CORRECT ANSWER One half of the pump bowl diameter but not less than 12 inches. Reference NFPA 20 2016, Figure A.7.2.2.1 (see note in figure) Determine the max allowable shutoff pressure for a fire pump with a rated cpacity of 750 gpm and a rated head of 60 ft. - CORRECT ANSWER 36 psi. 1.4 x 60 ft = 84 ft, Head = P psi/0.433, P = Head x 0.433, P = 84 x 0.433 = 36.37 psi. This complex phenomenon specific to pumps or other hydraulic equipment is the result of suction pressure falling below vapor pressure corresponding to the water temperature: - CORRECT ANSWER Cavitation
A high-rise building where the floor of an occupiable story is greater than _____ above the lowest level of fire department vehicle access. - CORRECT ANSWER 75ft Refrence NFPA 14 2016 Section 3.3.7. In a manufacturing plant classified as Ordinary Hazard Group 2, the sprinkler system is provided with one inside hose station. Per NFPA 13 2016, Table 11.2.3.1.2. what is the minimum inside hose demand? - CORRECT ANSWER 50 gpm A water flow test was conducted using 2 hydrants. Both 2 1/2" outlets were used on hydrant #1 while one outlet was used on hydrant #2. The pitot reading at each hydrant was 12 psi. If the discharge coefficient is 0.7, what is the total water flow (gpm) during this test? - CORRECT ANSWER The correct answer is 1356 gpm. Solution #14: Q = 29.84 cd 2 √P Q 1 = 29.84 x 0.7 x (2.5) 2 x √12 = 452.09 gpm Q 2 = 29.84 x 0.7 x (2.5) 2 x √12 = 452.09 gpm Q 3 = 29.84 x 0.7 x (2.5) 2 x √12 = 452.09 gpm Q total = Q 1 + Q 2 + Q 3 Q total = 452.99 gpm + 452.99 gpm + 452.99 gpm = 1356.27 gpm Round down to 1356 gpm In a water flow test using two hydrants, _________ pressure is the pressure at the hydrant where the water is not flowing. - CORRECT ANSWER Residual Pressure Refrence NFPA 13 2016 Section A.24.2.2. What type of information is collected when you are conducting a water flow test from one hydrant? - CORRECT ANSWER Static and Residual Pressure
Reference OSHA 29 CFR, Part 1910.21(a) (2). _________ indicates a mandatory requirement according to NFPA definitions? - CORRECT ANSWER Shall. Reference NFPA 13 2016, Section 3.2.4. 100 gpm is flowing through 100' of 1 1/4in Schedule 40 pipe. How many feet of 1 1/2in pipe will produce the same friction loss? - CORRECT ANSWER Step #1: Assume this is Schedule 40 pipe, C = 120. Use the Hazen-Williams formula to calculate the friction loss for the 1 ¼ in. pipe and the 1 ½ in. pipe. For 1 ¼ in. pipe (ID = 1.38): P friction loss = 4.52 x Q 1. c 1.85 x d 4. P friction loss = 4.52 x 100 1. 120 1.85 x 1.38 4. P friction loss = 0.672 psi/ft For 1 ½ in. pipe (ID = 1.61): P friction loss = 4.52 x Q 1. c 1.85 x d 4. P friction loss = 4.52 x 100 1. 120 1.85 x 1.61 4. P friction loss = 0.317 psi/ft Step #2: Determine the total friction loss for 100 gpm flowing through 100 ft. of 1 ¼ in. Schedule 40 black steel pipe: 100 ft. x 0.672 psi/ft = 67.2 psi Step #3: Determine the pipe length to produce the same friction loss in the 1 ½ in. pipe:
y ft. x 0.317 psi/ft = 67.2 psi y = 67.2 ÷ 0. y = 212 ft. Determine the velocity pressure (in psi) for a 2 in. Schedule 5 steel pipe, with a flow rate of 25 gpm. - CORRECT ANSWER Solution #9: Use the velocity pressure formula found in NFPA 13 2016, Section 23.4.2.2 to determine the velocity: P v = 0.001123Q 2 d 4 Step #1: 2 in. Schedule 5 pipe ID = 2.245 in. (see NFPA 13 2016, Table A.6.3.2) Step #2 : Using the information from the problem, determine velocity pressure: Q = 25 gpm, d = 2.245 in. P v = 0.001123x (25) 2 (2.245) 4 P v = 0.001123 x 625 2 5. P v = 0.028 psi The max allowable shutoff head for a pump with a rated capacity of 900 gpm and a rated head of 250ft is: - CORRECT ANSWER 350 ft. Max = 140% of rated head = 1.4 x 250 = 350 ft. The size requirements for the suction and discharge pipe of a fire pump with a rating of 1000 gpm are: - CORRECT ANSWER 8 inches and 6 inches. Reference NFPA 20 2016, Table 4.27(a). A sprinkler system that is composed of 2 1/2" sch 40 steel pipe. What is the max distance between hangers? - CORRECT ANSWER 15 ft. Reference NFPA 13 2016, Table 9.2.2.1(a)
