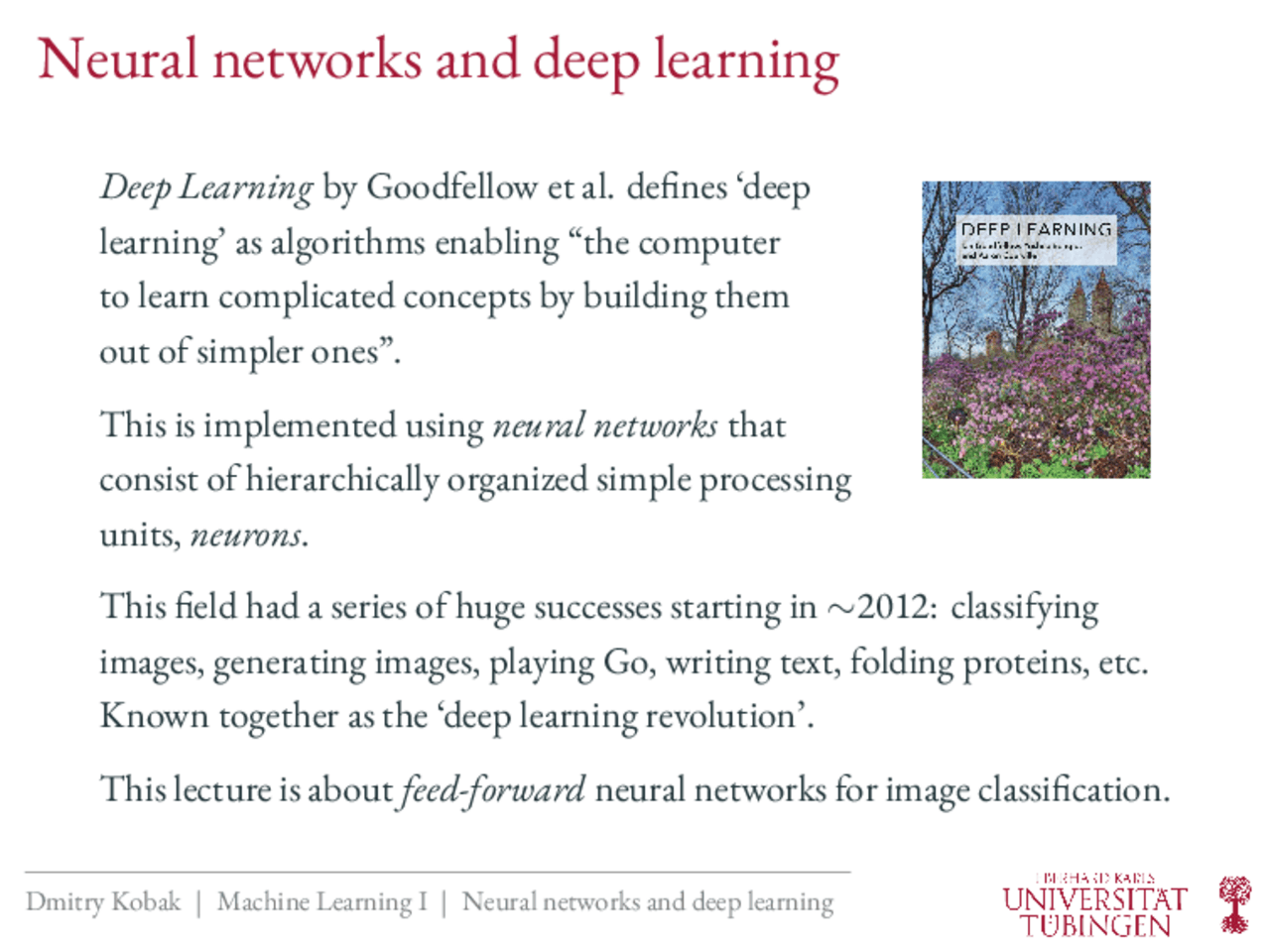

Neural networks and deep learning
Deep Learning by Goodfellow et al. defines ‘deep learning’ as algorithms enabling “the computer to learn complicated concepts by building them out of simpler ones”. This is implemented using neural networks that consist of hierarchically organized simple processing units, neurons. This field had a series of huge successes starting in ∼2012: classifying images, generating images, playing Go, writing text, folding proteins, etc. Known together as the ‘deep learning revolution’. This lecture is about feed-forward neural networks for image classification.
We have already spent one entire lecture talking about a neural network classifier!
A hidden layer
Logistic regression is a linear network that has an input layer and an output layer. We now add a hidden layer :
L = −
∑ i
[ yi log h ( x i ) + (1 − yi ) log
( 1 − h ( x i )
)]
Linear: h ( x ) = 1 1 + e − W^2 W^1 x^
Nonlinear: 1 1 + e − W^2 ϕ ( W^1 x )
Activation function
We want to use some nonlinear activation function ϕ that is easy to work with. The most common choice:
ϕ ( x ) = max(0 , x ).
Such neurons are called rectified linear units (ReLU).
Going deeper
What we had above was a shallow network. Here is a deeper one:
L = −
∑ i
[ yi log h ( x i ) + (1 − yi ) log
( 1 − h ( x i )
)]
h ( x ) = 1 1 + e
− W 4 ϕ
( W 3 ϕ
( W 2 ϕ ( W 1 x )
))
Gradient
Logistic regression gradient (see Lecture 5):
∇L = −
∑ ( yi − h ( x i )
) ∇( β ⊤ x i ) = −
∑ ( yi − h ( x i )
) x i.
The gradient for the deep network:
∇L = −
∑ ( yi − h ( x i )
) ∇
[ W 4 ϕ
( W 3 ϕ
( W 2 ϕ ( W 1 x i )
))] .
Let us write this term down with indices:
z =
∑ a
W 4 aϕ
[ ∑
b
W 3 abϕ
( ∑
c
W 2 bcϕ
( ∑ d
W 1 cdxid
))] .
Now we need to use the chain rule: if h ( x ) = f ( g ( x )), then h ′( x ) = f ′( g ( x )) g ′( x ).
Stochastic gradient descent
Using backpropagation, we can compute the gradient (partial derivatives with respect to each weight) and use gradient descent. Two notes:
- In practice, gradient descent algorithm is often used with some modifications: momentum , adaptive learning rates (e.g. Adam), etc.
- Gradient descent requires summation over all training samples at each step. In practice, training data are split into batches and are processed one ny one: stochastic gradient descent (SGD). One sweep through the entire training dataset is called an epoch.
Multiclass classification
If there are K classes, then the last softmax layer has K output neurons:
P ( y = k ) = e
zk ∑ i ezi^
where zi are pre-nonlinearity activations: z = W Lϕ
( W L − 1 ϕ (... )
) . The cross-entropy loss function can be written as
L = −
∑^ n i =
∑^ K
k =
Yik log P ( yi = k ) ,
where Yik = 1 if yi = k and 0 otherwise.
Convolutional neural networks:
The input image has three input channels:
Convolutional neural networks
Several feature maps :
What do CNNs learn?
First layer:
Krizhevsky et al. 2012
What do CNNs learn?
Hidden layer:
Olah et al. 2017
Overfitting and regularization
Ridge ( L 2 ) regularization: λ ∥ W l ∥^2 on each layer l. This is also called weight decay (see Lecture 4). Another method is called early stopping :
Remark: for linear regression one can show that early stopping penalizes smaller singular values stronger, as does the ridge penalty.
Overparametrization
Modern neural networks are typically used in the overparametrized regime, i.e. they can perfectly or near-perfectly overfit training data. This can be shown by training them using randomly shuffled labels: they can still achieve zero training loss. At the same time, generalization performance can be high: ‘benign’ overfitting due to implicit regularization. Sometimes one sees overfitting in the test loss but not in the test accuracy:
