A detailed explanation of the 'show ip interface brief' command in cisco, including its syntax, usage guidelines, and examples. It also describes the significant fields shown in the display, such as interface type, ip address, method, and status.
Typology: Study notes
1 / 4
This page cannot be seen from the preview
Don't miss anything!

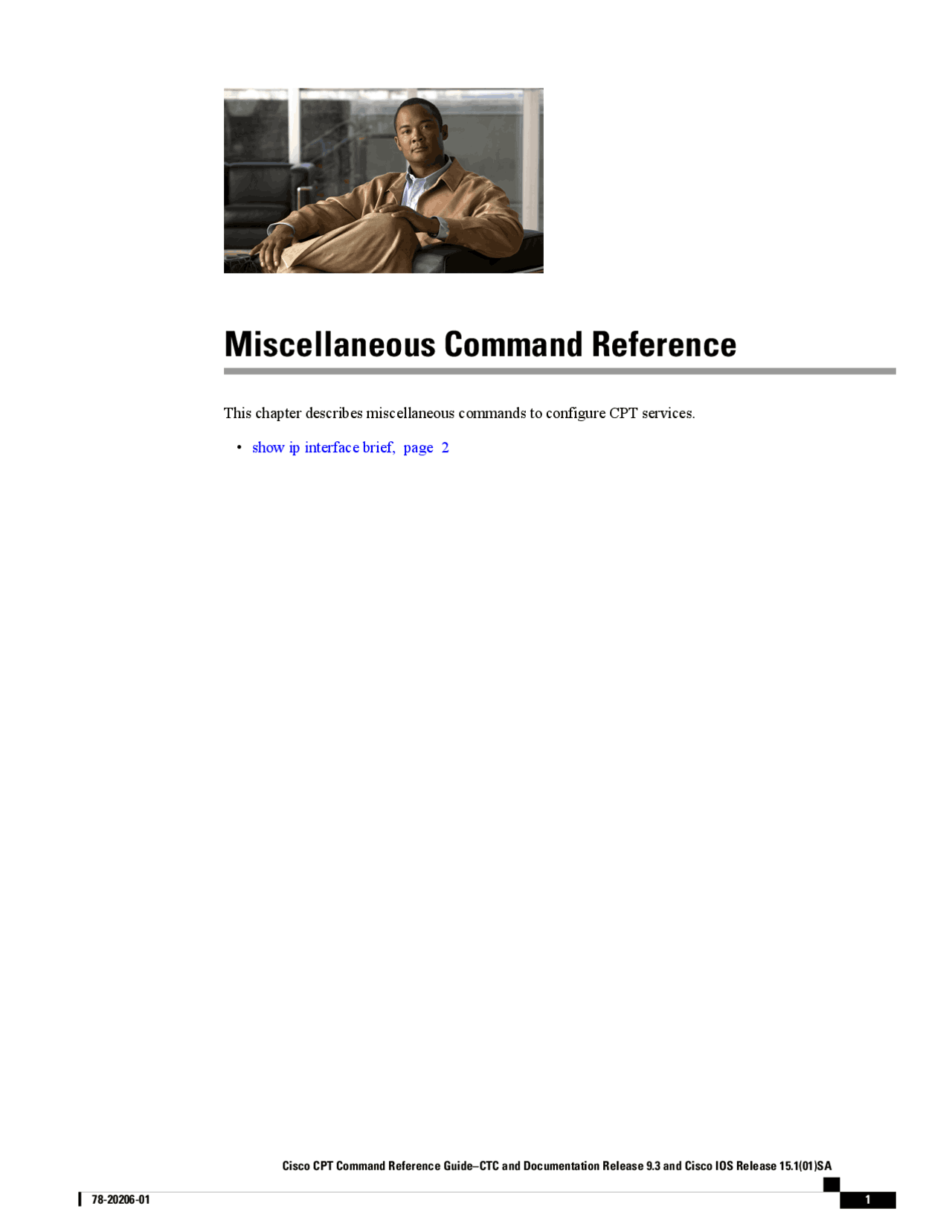

This chapter describes miscellaneous commands to configure CPT services.
Cisco CPT Command Reference Guide–CTC and Documentation Release 9.3 and Cisco IOS Release 15.1(01)SA
To display the usability status of interfaces configured for various IP addresses, use the show ip interface brief command in privileged EXEC mode.
show ip interface brief [brief]
Syntax Description (^) brief (Optional) Displays a summary of the usability status information for each interface.
Command Default (^) This command has no defaults.
Command Modes (^) Privileged EXEC
Command History (^) Release Modification
9.3.0 This command was introduced.
Usage Guidelines (^) The show ip interface brief command can be used to view a summary of the router interfaces. This command displays the IP address, interface status, and additional information.
Examples The following is sample output from the show ip interface brief command:
Router# show ip interface brief
Interface IP-Address OK? Method Status Protocol GigabitEthernet0/1 unassigned YES unset up up GigabitEthernet0/2 192.168.190.235 YES unset up up GigabitEthernet0/3 unassigned YES unset up up GigabitEthernet0/4 192.168.191.2 YES unset up up TenGigabitEthernet2/1 unassigned YES unset up up TenGigabitEthernet2/2 unassigned YES unset up up TenGigabitEthernet2/3 unassigned YES unset up up TenGigabitEthernet2/4 unassigned YES unset down down GigabitEthernet36/1 unassigned YES unset down down GigabitEthernet36/2 unassigned YES unset down down GigabitEthernet36/11 unassigned YES unset down down GigabitEthernet36/25 unassigned YES unset down down Te36/45 unassigned YES unset down down Te36/46 unassigned YES unset down down Te36/47 unassigned YES unset down down Te36/48 unassigned YES unset down down Virtual36 unassigned YES unset up up
Cisco CPT Command Reference Guide–CTC and Documentation Release 9.3 and Cisco IOS Release 15.1(01)SA
show ip interface brief
Cisco CPT Command Reference Guide–CTC and Documentation Release 9.3 and Cisco IOS Release 15.1(01)SA
show ip interface brief
