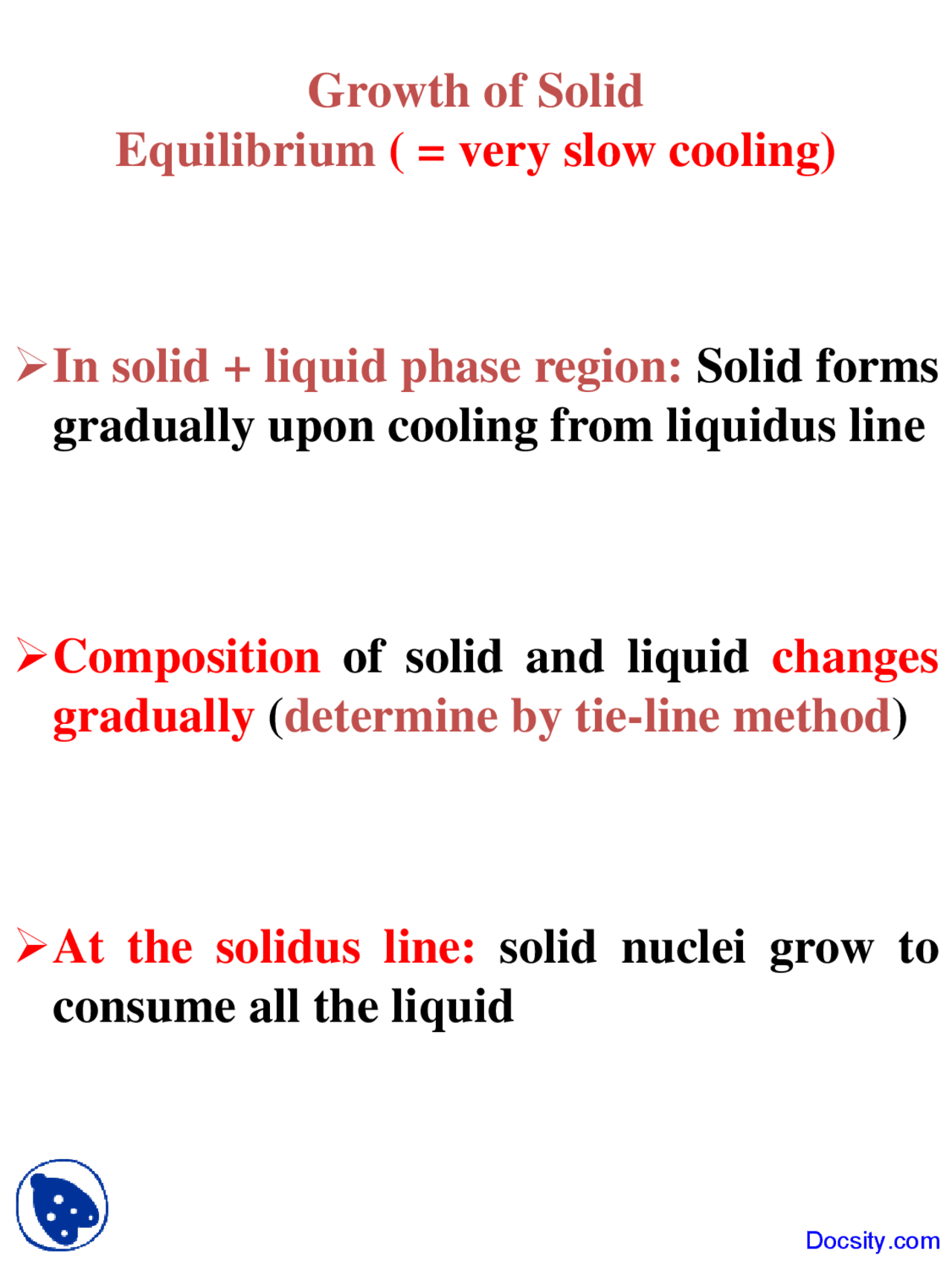

Growth of Solid Equilibrium ( = very slow cooling)
In solid + liquid phase region: Solid forms gradually upon cooling from liquidus line
Composition of solid and liquid changes gradually (determine by tie-line method)
At the solidus line: solid nuclei grow to consume all the liquid
Microstructure in isomorphous alloys Non-equilibrium cooling
(no tie line) ⇒ New layers solidifying on grains have the equilibrium composition at that T ⇒ Formation of layered (cored) grains
Average Ni content of grains is higher?
Application of the lever rule ⇒
Greater proportion of liquid phase as compared to equilibrium at the same T ⇒
Solidus line is shifted to the right ⇒ higher Ni content
Solidification complete at lower T ⇒ Outer part of grains are richer in the low-melting component (Cu).
Mechanical properties of isomorphous alloys
Solid solution strengthening
Three single phase regions α - solid solution Ag in Cu matrix, β = solid solution of Cu in Ag matrix, L - liquid
Three two-phase regions (α + L, β +L, α +β)
Solvus separates one solid solution from a mixture of solid solutions. Solvus ⇒ limit of solubility
Copper – Silver phase diagram
Eutectic (invariant) point Liquid + two solid phases co-exist Eutectic composition C (^) E Eutectic temperature TE. Eutectic Isotherm - horizontal solidus line at TE
Lead – Tin phase diagram
Invariant or eutectic point
Eutectic isotherm
Binary Eutectic System
Compositions + relative amounts of phases ⇒ Tie line and lever rule
Microstructure in eutectic alloys
Cooling of liquid lead/tin system at different compositions
Lead-rich alloy (0-2 wt% tin)
Solidification proceeds as for isomorphous alloys
L → α +L → α
No changes above eutectic temperature, T (^) E At T (^) E liquid transforms to α and β phases (eutectic reaction)
L → α + β
Solidification at Eutectic composition
Solidification at Eutectic composition
α and β compositions are very different ⇒ Eutectic reaction ⇒ redistribution of Pb and Sn atoms by diffusion Simultaneous formation of α and β phases ⇒ layered (lamellar) microstructure: eutectic structure
Formation of eutectic structure in lead-tin system. Dark layers are lead-rich α phase. Light layers are the tin-rich β phase.
Microstructure in eutectic alloys Microconstituent – element of microstructure having a distinctive structure. For previous page: microstructure ⇒ two microconstituents: primary α and eutectic structure.
Although the eutectic structure consists of two phases, it is a microconstituent with distinct lamellar structure and fixed ratio of the two phases.
Relative amounts of microconstituents
Treat eutectic as separate phase + apply lever rule
Fractions: primary α phase (18.3 wt% Sn) and eutectic structure (61.9 wt% Sn):
We = P / (P+Q) ; Wα’ = Q / (P+Q)
