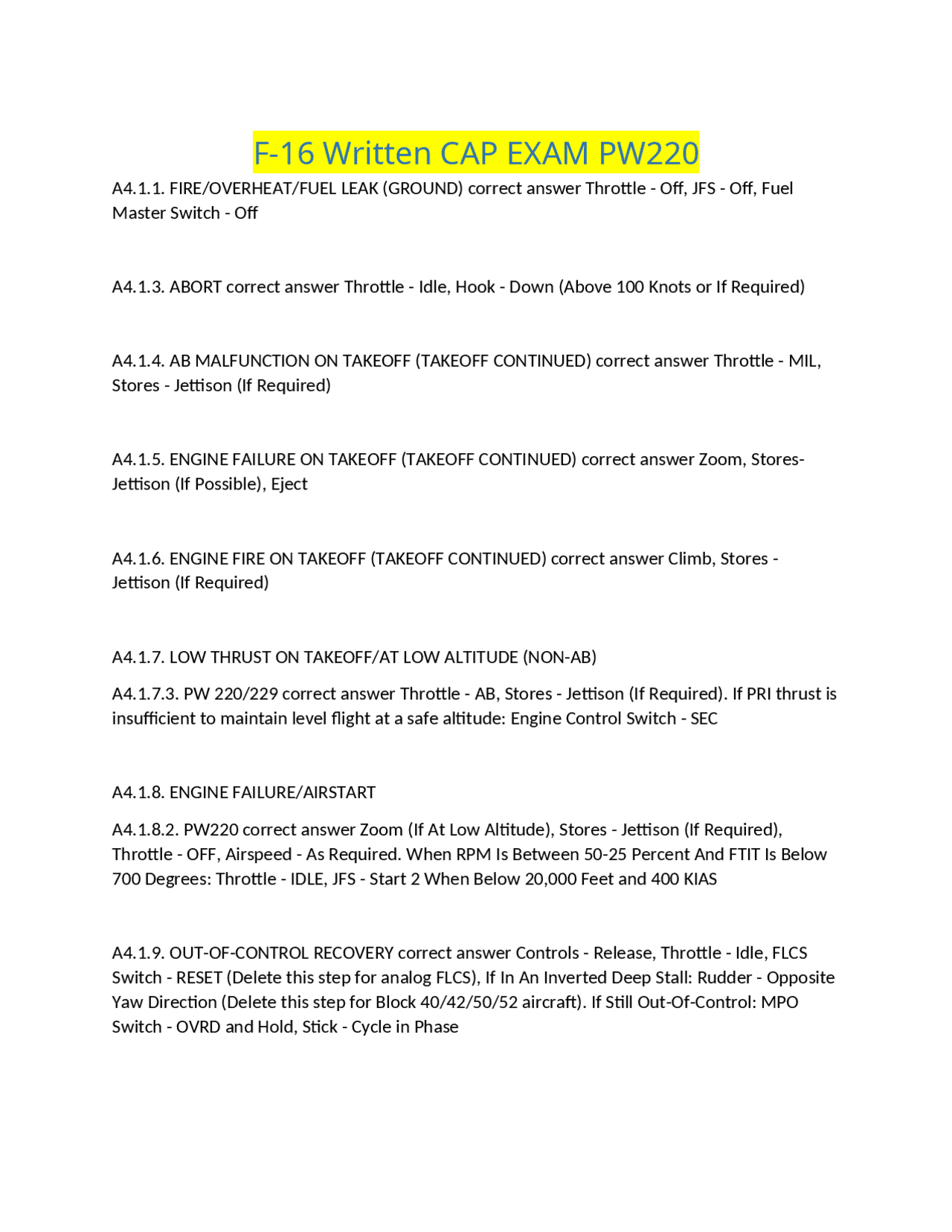

F-16 Written CAP EXAM PW220
A4.1.1. FIRE/OVERHEAT/FUEL LEAK (GROUND) correct answer Throttle - Off, JFS - Off, Fuel
Master Switch - Off
A4.1.3. ABORT correct answer Throttle - Idle, Hook - Down (Above 100 Knots or If Required)
A4.1.4. AB MALFUNCTION ON TAKEOFF (TAKEOFF CONTINUED) correct answer Throttle - MIL,
Stores - Jettison (If Required)
A4.1.5. ENGINE FAILURE ON TAKEOFF (TAKEOFF CONTINUED) correct answer Zoom, Stores-
Jettison (If Possible), Eject
A4.1.6. ENGINE FIRE ON TAKEOFF (TAKEOFF CONTINUED) correct answer Climb, Stores -
Jettison (If Required)
A4.1.7. LOW THRUST ON TAKEOFF/AT LOW ALTITUDE (NON-AB)
A4.1.7.3. PW 220/229 correct answer Throttle - AB, Stores - Jettison (If Required). If PRI thrust is
insufficient to maintain level flight at a safe altitude: Engine Control Switch - SEC
A4.1.8. ENGINE FAILURE/AIRSTART
A4.1.8.2. PW220 correct answer Zoom (If At Low Altitude), Stores - Jettison (If Required),
Throttle - OFF, Airspeed - As Required. When RPM Is Between 50-25 Percent And FTIT Is Below
700 Degrees: Throttle - IDLE, JFS - Start 2 When Below 20,000 Feet and 400 KIAS
A4.1.9. OUT-OF-CONTROL RECOVERY correct answer Controls - Release, Throttle - Idle, FLCS
Switch - RESET (Delete this step for analog FLCS), If In An Inverted Deep Stall: Rudder - Opposite
Yaw Direction (Delete this step for Block 40/42/50/52 aircraft). If Still Out-Of-Control: MPO
Switch - OVRD and Hold, Stick - Cycle in Phase
