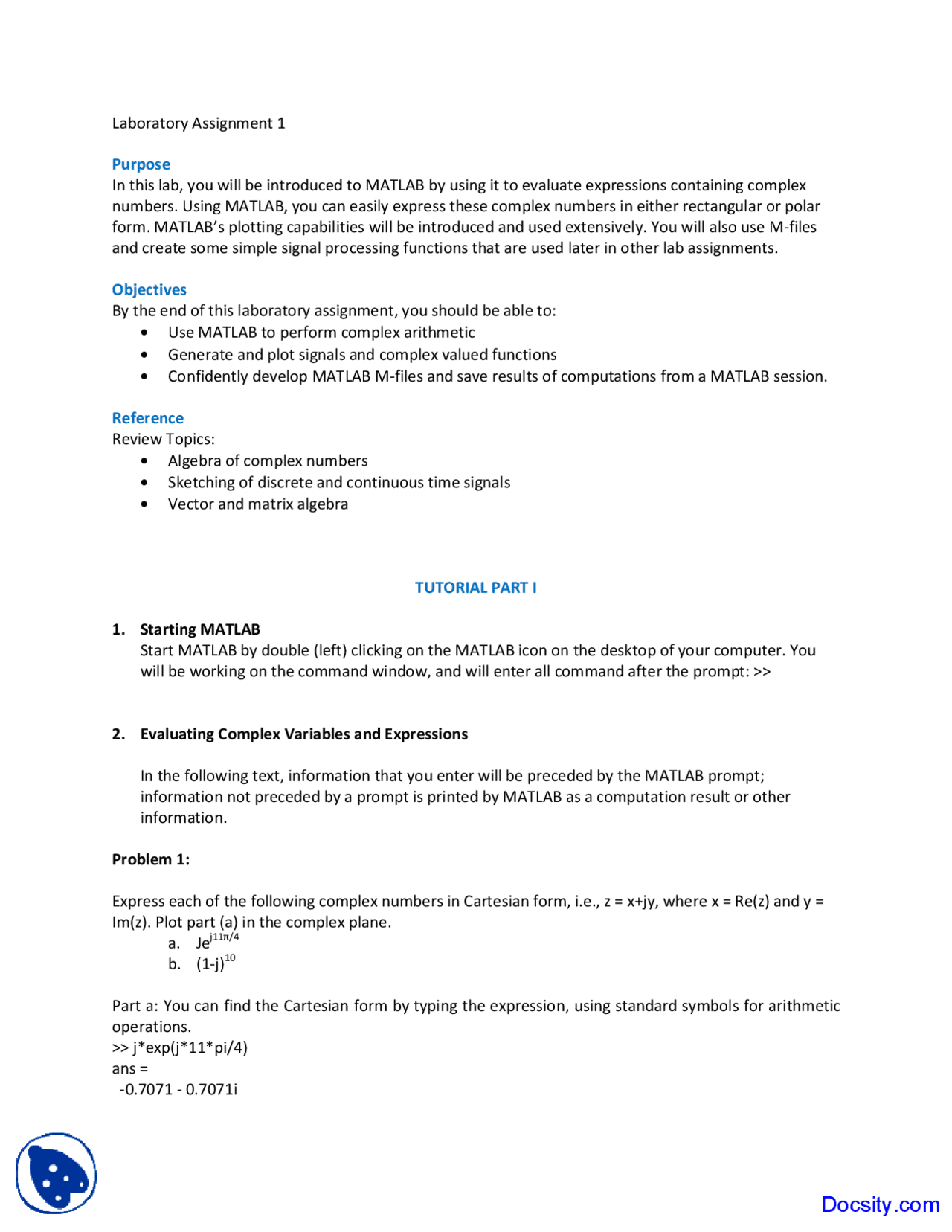

Laboratory Assignment 1
Purpose In this lab, you will be introduced to MATLAB by using it to evaluate expressions containing complex numbers. Using MATLAB, you can easily express these complex numbers in either rectangular or polar form. MATLAB’s plotting capabilities will be introduced and used extensively. You will also use M-files and create some simple signal processing functions that are used later in other lab assignments.
Objectives By the end of this laboratory assignment, you should be able to:
- Use MATLAB to perform complex arithmetic
- Generate and plot signals and complex valued functions
- Confidently develop MATLAB M-files and save results of computations from a MATLAB session.
Reference Review Topics:
- Algebra of complex numbers
- Sketching of discrete and continuous time signals
- Vector and matrix algebra
TUTORIAL PART I
1. Starting MATLAB Start MATLAB by double (left) clicking on the MATLAB icon on the desktop of your computer. You will be working on the command window, and will enter all command after the prompt: >> 2. Evaluating Complex Variables and Expressions
In the following text, information that you enter will be preceded by the MATLAB prompt; information not preceded by a prompt is printed by MATLAB as a computation result or other information.
Problem 1:
Express each of the following complex numbers in Cartesian form, i.e., z = x+jy, where x = Re(z) and y = Im(z). Plot part (a) in the complex plane. a. Jej11π/ b. (1-j)^10
Part a: You can find the Cartesian form by typing the expression, using standard symbols for arithmetic operations.
jexp(j11*pi/4) ans = -0.7071 - 0.7071i
Note that MATLAB has evaluated the expression and echoed the result to the screen, expressed in Cartesian form as the variable ans. Also, just like any programming language, exp(x) returns ex. Other standard functions, including trigonometric functions, are available; type help elfun for a list. Additionally, pi is defined as a special variable having the value π, and j is defined as √(-1). Any special variable will act as defined until you change its value by assigning a new value to it. For example, to change pi to 3, issue the command
pi = 3 pi = 3 pi pi = 3 As you can see, pi has been changed. If you clear your definition, the old one reappears: clear pi pi ans =
Other variables can be set the same way. For instance, we can set z to the solution of part b:
z=(1-j)^ z = 0 -32.0000i
3. Plotting Complex-Valued Functions
Plots in MATLAB are generated using the plot function. Plot (x, y) generates a plot where the values of the vector x indicate points along the horizontal axis corresponding to the values in the vector y that are to be plotted on the vertical axis. Vectors x and y must have the same number of elements.
Since complex values have two components corresponding to x+jy , MATLAB provides the real and imag functions to separate the real and imaginary parts of a complex number:
z = 3+4j; zr = real(z); zi = imag(z);
real and imag break z into real and imaginary parts in the variables zr and zi, respectively.
Note that typing a semicolon at the end of the command prevents MATLAB from printing the result on your screen. This will be important when you create large matrices and vectors.
To plot a complex number, we can either plot the real parts vs. the imaginary parts or let MATLAB do it for us. Here, we supply zr and zi to the plot function:
plot(zr,zi,'*'); grid
and MATLAB generates the plot:
x = [0 1 2 3 4 5] x = 0 1 2 3 4 5 This generates a row vector x , i.e., a 1X6 matrix containing six elements, the integers 0 through 5. An easier way to generate this same vector is to use a range generating statement:
x = 0: x = 0 1 2 3 4 5
The colon operator acts like the word “to”, in effect generating the function “0 to 5’. A step size of 1 is the default. A different step size - positive, negative, real or integer - can be specified by placing the step value between the beginning and end of the range, as in k below:
k = 0:0.01:5;
which is a vector containing 501 data points that are 0.01 apart, starting from 0 and ending at 5.
Type help linspace to learn about another method to generate vectors in MATLAB.
The next step is to evaluate y , using x as defined above. y = 3*x+ y = 2 5 8 11 14 17
This statement instructs MATLAB to multiply every element in x by 3 and then add 2 to every element, storing the results in y. Thus 3* x is treated as a scalar multiplication of a vector and the 2 is implicitly treated as a vector of the same length as x comprising all 2s.
Note that when a dot precedes an operator, as using a .* for multiplication, it implies that each element in the vector (matrix) results from applying that operator to corresponding elements in the first and second vectors (matrices). For example, dot multiplication of two mX1 vectors results in an mX1 vector where each element is the product of the corresponding elements in the first and second vectors. Note that .* is the “dot product”, pr inner product operation from linear algebra. This type of multiplication requires that the vectors or matrices be of the same size and is called pointwise, rather than vector or matrix multiplication.
Since MATLAB is based on matrix operations, it is important to recall that you can only add or subtract matrices having the same dimensions, e.g., the addition of a 3X2 matrix to a 2X3 matrix is undefined. Matrix multiplication requires that the number of columns in the first matrix be the same as the number of rows in the second matrix. For example, multiplication of a 2X5 matrix A and a 5X3 matrix B results in a 2X3 matrix C=AB , whereas the multiplication BA is undefined. However, the multiplication D = B’A is defined, where ‘ denotes the transpose operation in MATLAB.
- Generating Complex Functions
Let’s generate values for the complex function f(t) = 3ej3πt^ for t ranging from 0 to 1 in 0. increments. The first step is to create a time variable.
t = 0:0.001:1;
Here the semicolon at the end is really important unless you want to see all 1001 values echoed back on your screen.
Next, construct a vector containing value of this function for each time value in t :
f = 3exp(j3pit);
The variable f now has the complex result of the function evaluation.
It should be pointed out that transcendental functions (e.g. sin , cos , exp ) in MATLAB work on a point-by-point basis; in the above command, the function exp computes a vector where each element is the exponential of its corresponding element in j3pit* (10001 total elements).
- Accessing Vectors and Matrices
The data in vectors can be viewed and displayed in several different ways: it can be plotted to the screen, printed on paper, and saved electronically. It is not, however, always desirable to access the entire vector at once when displaying the information in it. To access single elements or ranges of a vector, an index element or list that indentified which elements are of interest is needed.
Elements in MATLAB vectors are identified by the vector name and an integer number or index. In MATLAB, only positive integer indices are used. Thus the first element in a row or column vector f is denoted by f(1), the second element by f(2), and so on. To access specific elements in a vector you need to use the name of the variable and the integer index numbers of the elements you wish to access. Range statements can also be used for indices to access the indexed elements. For example,
f(25); f(3:10); f(1:2:50);
The first line accesses the 25th^ element of f. The second accesses elements 3 through 10, inclusive; and the third returns the odd numbered elements between 1 and 50.
Elements in matrices require the use of two-dimensional indices for identification and access. For example, f(3,2) returns the element in the third row, second column; ranges can also be used for any index. For example, f(1:3, 4:8) defines a matrix that is equivalent to a section of the matrix f containing the first, second and third rows, and the fourth through eighth columns.
If a : is used by itself, it refers to the entire range of that index. For example, a 3X5 matrix could have its fifth column referenced by f(:,5) , which means “all rows, 5th^ column only,” as well as f(1:3, 5) , which means rows 1 to 3, 5th^ column only.
The index number can be another variable as well. This is useful for creating programming loops that execute the same operations on the elements of a matrix.
Creation of a Function in MATLAB
A function in MATLAB is a special kind of M-file. The first line defines the function, both giving it a name and indicating what values are to be passed as arguments to the function and those that are to be generated by the function. Once you have created a function, you can use it as you would any built-in function in MATLAB, such as help or plot.
A Useful feature of function files is that the lines that follow the function definition and begin with a comment symbol (%) are printed when help is requested for your function ( help yourfunction prints these lines).
Make a function that takes two variables as arguments, adds 1 to the first variable, multiplies the second variable by two and returns the product of the two variables. This function is called blackbox. The file is called balckbox.m
Solution:
function [output] = blackbox(a,b) %Adds 1 to argument a and multiplies b by 2 % Returns the product of a nd b in output % % if the two variables are not if the same size %the larger variable is stripped to be the same size as the smaller
%Detremine the lengths of each vector la = length(a); lb = length(b);
%Add 1 to a a = a+1;
%Multiply b by 2 b = b*2;
%Compare the lengths; truncate the longer vector if la < lb output = a.b(a:la); else output = a(1:lb).b; end
The elements in this file that are required in order for MATLAB to recognize it as a valid function are:
- The M-file must start with the word function.
- The variable [output] (could be any other name) must be the function output. Note that while the function name may be different from the filename, the filename MUST be use to access the function.
ASSIGNMENTS
- Consider the functions p=3sin(x^2 ) + 2cos(y^3 )and q = 3cos(xy)+2y^2 , where x is in the range 0 to 5 with 0.01 increments and y = 0.05x+2.01. a. Plot y, p and q against x. Grid your plot, label your axes and include a title for your plot. b. Determine k = p+q and plot k against x
- Plot the function y(t) = 1-e2.2t)cos(60πt). Use t from 0 to 0.25 in 0.001 increments.
- A polynomial function has roots at -2, 2, -2+3j, -2-3j. Determine the polynomial, plot the four roots in the complex plane, and plot the polynomial function for the range -5 to 5 in steps of 0.01. (Label your axes and grid/title your graph). Use help to look up the functions poly , roots , and polyval to help you with this problem.
- Consider the complex function f(t) = 3e-j2πt+ π/
On the same plots but different graphs, plot the real and imaginary parts as a function of time from 0 to 3 seconds in 0.01 increments. Also plot the magnitude and phase of f as a function of time on the same plots but different graphs. You may wish to look up the functions subplot, abs and angle.
- Generate a file that calculates the sine wave of 5 Hz for 3 seconds using 0.001-second increments and plots the sine wave versus time with all axes labeled. Display the length of the time sample and the length of the sine wave calculated
- Generate a function called squarer that returns the vector with each element squared. Use this function with the sine wave from the previous problem and display the sum of the elements in both the sine wave vector and the vector composing square of the sine wave.
- Write a MATLAB function half that removes every other element from a vector of arbitrary length, creating a shorter vector made out of only the odd-numbered elements of the original vector; and a MATLAB function double that creates a longer vector by adding an additional element between neighboring elements in the original vector. Each new element should equal the average of its neighboring elements. Use only matrix/vector manipulations: do NOT use loops. Test your solution by applying half and double to the vector x = [1 2 3 4 5 6 5 4 3 2 1]. What happens after the execution of half followed by double , and double followed by half?
