Module 21: Problem and Solution
Lecture 41: Solution to Critical Section Problem

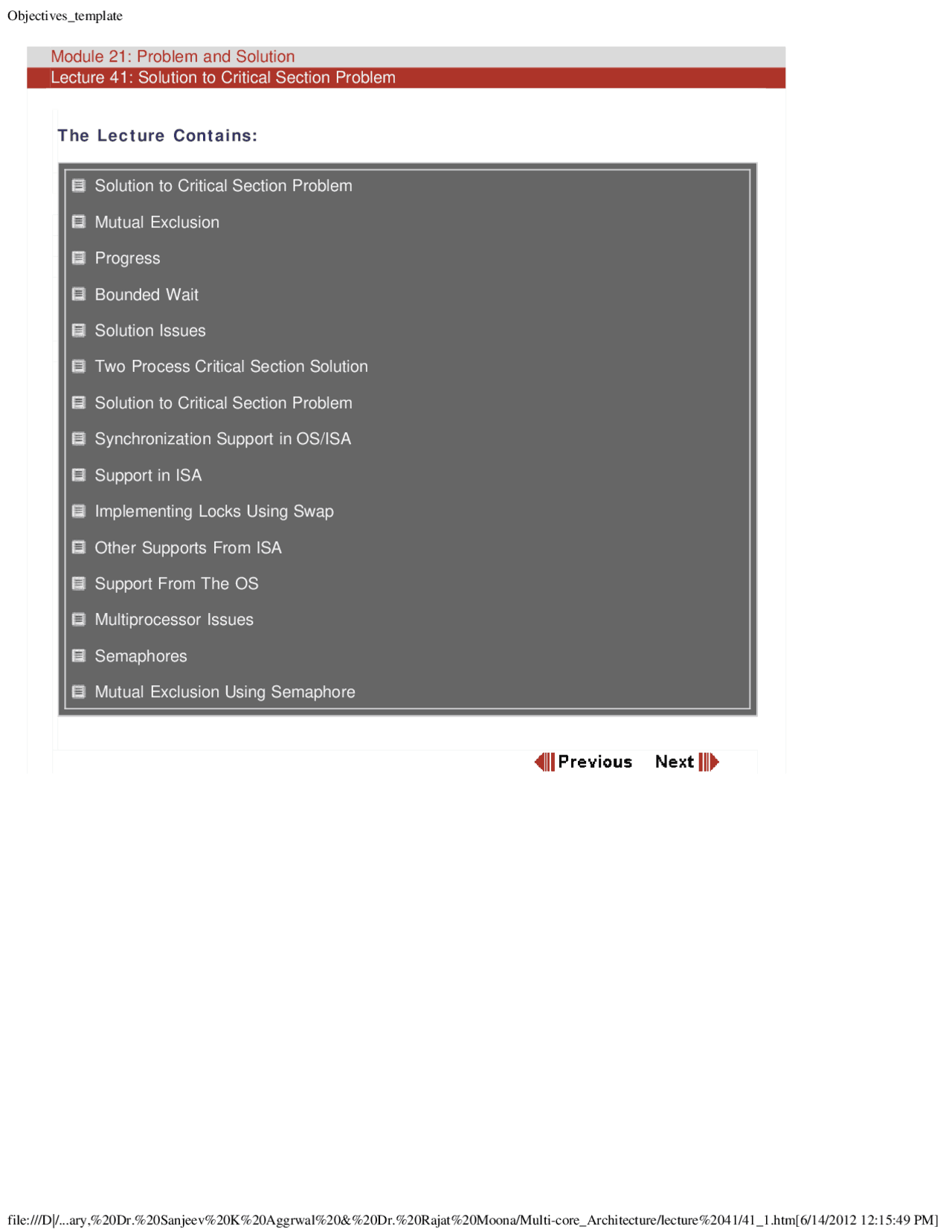

The Lecture Contains:
Solution to Critical Section Problem
Mutual Exclusion
Progress
Bounded Wait
Solution Issues
Two Process Critical Section Solution
Solution to Critical Section Problem
Synchronization Support in OS/ISA
Support in ISA
Implementing Locks Using Swap
Other Supports From ISA
Support From The OS
Multiprocessor Issues
Semaphores
Mutual Exclusion Using Semaphore
Module 21: Problem and Solution
Lecture 41: Solution to Critical Section Problem
Solution to Critical Section Problem
Requirements Mutual Exclusion Progress Bounded Wait We can make no assumptions on Processor speed Relative speeds of processes Time to execute any critical/remainder section Time to execute any entry/exit code
Mutual Exclusion
Statement of obvious If a process is in critical section at some point in time, no other process should be permitted to enter its critical section. This is clearly the most basic requirement for the solution.
Module 21: Problem and Solution
Lecture 41: Solution to Critical Section Problem
Solution Issues
Preemptive kernel A process may be preempted when in kernel mode Non-preemptive kernel A process may not be preempted when in kernel mode Preemptive kernels are difficult Especially for SMP machines. Threads on multi-processors face independent OS. Preemptive kernels are essential In embedded systems with RT guarantees Windows 2000, XP are non-preemptive Linux kernel became preemptive since Linux 2.
Two Process Critical Section Solution
Processes are P0 and P1. Processes share a common variable turn(=0 or 1). If turn= i, Pi is permitted to enter the critical section.
while (1) { While (turn != i); Critical section turn = 1-i; Remainder section }
Module 21: Problem and Solution
Lecture 41: Solution to Critical Section Problem
Solution to Critical Section Problem
Consider two processes P0 and P1. Shared variables (for solution to CSP) int turn; boolean flag[2]; flag[ i ] is true when Piis ready to enter its critical section.
while (1) { flag[i] = TRUE; turn = j; while (flag[j] && turn == j); Critical section flag[i] = FALSE; Remainder section }
Synchronization Support in OS/ISA
Synchronization code can be written using locks while (1) { Non critical code Acquire Lock Critical Section Code Release Lock } Implementation of Lock require support from the ISA TestAndSet instruction, Swap instruction.
Module 21: Problem and Solution
Lecture 41: Solution to Critical Section Problem
Other Supports from ISA
Some processors support TestAndSet instruction. boolean TestAndSet(boolean *mem) { boolean ret = *mem; *mem = TRUE; return ret; } Acquire Lock: while TestAndSet(&lock) ; Release Lock: lock = false;
Support From The OS
If OS is non-preemptive System calls can be provided for Acquire Lock and Release Lock. Process can not be preempted while acquiring and releasing locks. If OS is preemptive. System calls are tricky to support but not impossible.
Module 21: Problem and Solution
Lecture 41: Solution to Critical Section Problem
Synchronization Support in OS/ISA
Synchronization code can be written using locks while (1) { Non critical code Acquire Lock Critical Section Code Release Lock } Implementation of Lock require support from the ISA TestAndSet instruction, Swap instruction OS may provide system calls to Acquire lock or release lock. For preemptive OS kernels, hard to implement these calls
Solutions for Multi-processes
boolean waiting[n], lock; waiting[i] = TRUE; key = TRUE; while (waiting[i] && key) key = TestAndSet(&lock); waiting[i] = FALSE; // Critical Section j = (i+1)%n; while ((j != i) && waiting[j]==FALSE) j = (j+1)%n; if (j==i) lock=FALSE; else waiting[j] = FALSE; // Remainder Section
Multiprocessor Issues
Multiple processors share a single bus. Arbitration is for bus cycles Atomicity across processors is at the granularity of bus cycle. TestAndSet or Swap instructions require At least one read and one write cycle Bus arbitration logic has to be instructed to give bus for two cycles. Lock instruction prefix in Pentium For example lock xchg %ax, mem Lock instruction causes an arbitration sequence to be done for the entire instruction. Atomic instruction execution across multiple processors
