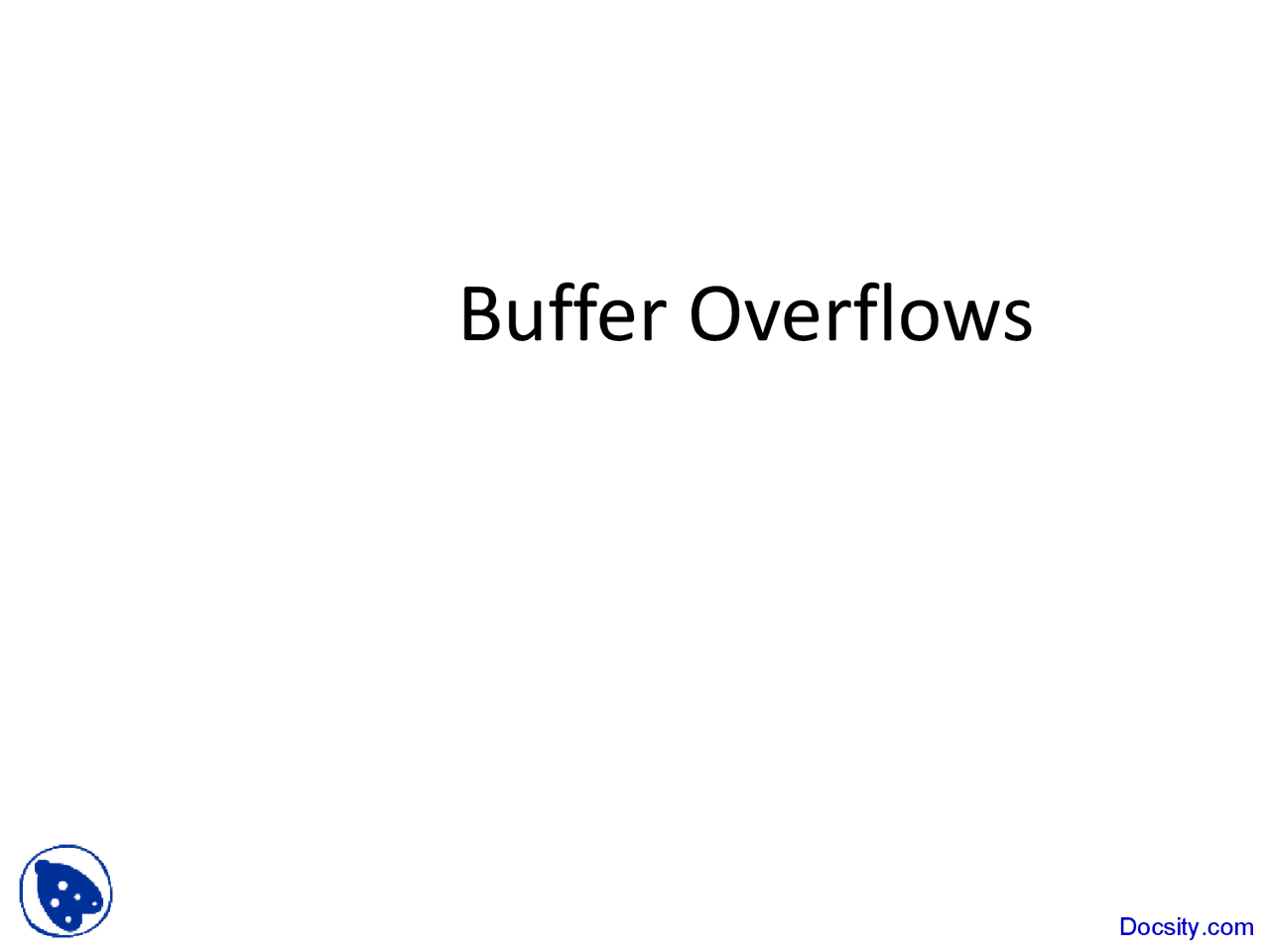

Buffer Overflows

Acknowledgements

 Wikipedia and its contributors (various

articles; Buffer overflow, scanf, strcpy,

Buffer overflow protection, Heap overflow,

Stack buffer overflow…)

 Google Seminar and its presenters

 Writing Secure Code 2 nd^ Edition by Michael

Howard and David LeBlanc. Microsoft Press

Overview

 Allocate memory (fixed size)

 Input to the buffer exceeds the buffer size

 Unchecked bounds  overwriting memory

 Checked bounds

 Raise exception (Java and .NET)  Truncate input

 What’s in memory?

 Data and code -- von Neumann architecture

Cases and Effects

 Unallocated page boundary / wrong access

mode:

 SIGSEGV, Access Violation, etc.  The program terminates  Slightly annoying, but what if it didn’t happen?

Cases and Effects

 What if it’s on the stack?

 Allocated page  Potentially visible changes  Corruption  Controlled corruption  Stack smashing

Cases and Effects

 What if it’s on the heap?

 Change the value of variables  DisableSecurity = true  Clobber pointers (linked lists, trees, …)  Alter malloc() data!  Change what memory ranges are used/free  Use dynamically allocated memory (same location as something previously allocated) as an alias.  Useful to overwrite function pointers!

Problems for Attackers

 Find the location of the buffer

 Not a big issue, since the code is usually loaded in the same place for performance  Use a “NOP sled”  Pad the payload with NOP instructions, or effectively NOP instructions  Jump anywhere into the NOP sled to get to the payload

 0x00 in the address (=string terminator)

Defensive Measures

 Canaries

 Pad buffers with a random, secret value determined at compile time or runtime  Check to see if the secret value is the same before allowing transfer of control  If you smash the boundaries of the array on the stack, how do you know what the values are?

Defensive Measures

 ASLR

 Randomize locations for loading of code  Requires compiler, linker, and runtime support for position-independent code (PIC)  Prevent attackers from being able to jump reliably to function calls or payload in the stack  Why? Because regular code is linked in by the runtime linker whereas the payload is not

Defensive Measures

 Stop using unsafe code!

 strcpy  strlcpy  strncat  strlcat  scanf  fgets on %s  gets  fgets

 Use a safer language

 Anything with bounds checking – Java, C#, VB.net, Python, Perl, Ruby, PHP, D…  …but be careful when calling C/C++/asm libraries

Examples

 Plain stack overrun using: scanf, strcpy

 Stack Based Buffer Overflow: HOME

 Heap Based Buffer Overflow: pwd
