Sample Solution for Assignment 2

Problem 2b

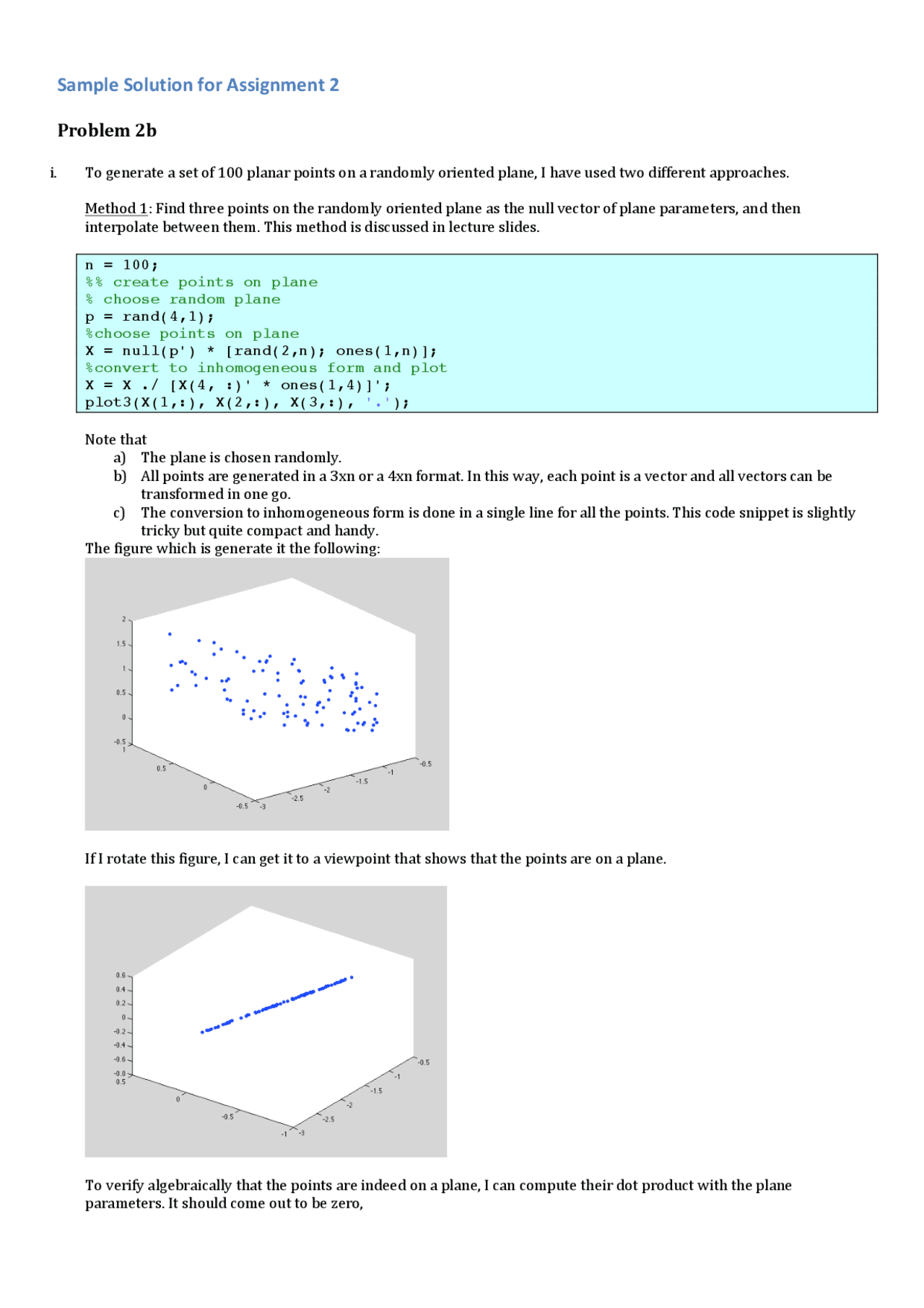

i. To generate a set of 100 planar points on a randomly oriented plane, I have used two different approaches. Method 1: Find three points on the randomly oriented plane as the null vector of plane parameters, and then interpolate between them. This method is discussed in lecture slides. n = 100; %% create points on plane % choose random plane p = rand(4,1); %choose points on plane X = null(p') * [rand(2,n); ones(1,n)]; %convert to inhomogeneous form and plot X = X ./ [X(4, :)' * ones(1,4)]'; plot3(X(1,:), X(2,:), X(3,:), '.'); Note that a) The plane is chosen randomly. b) All points are generated in a 3xn or a 4xn format. In this way, each point is a vector and all vectors can be transformed in one go. c) The conversion to inhomogeneous form is done in a single line for all the points. This code snippet is slightly tricky but quite compact and handy. The figure which is generate it the following: If I rotate this figure, I can get it to a viewpoint that shows that the points are on a plane. To verify algebraically that the points are indeed on a plane, I can compute their dot product with the plane parameters. It should come out to be zero,

sum(p'*X) ans =

  • 1.0922e- 14 which is indeed very small and practically zero. Method 2: An alternate method is to generate points on Z =0 plane and then rotate and translate them arbitrarily. % generate points on Z=0 plane; X = [rand(2,n); zeros(1,n)]; %generate random rotation [R, S, V] = svd(rand(3)); if det(R) == - 1 R([2 3], :) = R([3 2],:); end; %transform points with the above rotation and random translation X = R * X + 100 * rand(3,1) * ones(1,n); %plot in 3D plot3(X(1,:), X(2,:), X(3,:), '.'); Note that a) I used SVD of a random 3x3 matrix to get an orthonormal matrix, and then verified its determinant to make sure that it is a rotation matrix. b) The translation vector is added to all points in one go, by replicating the vector n times by outer product with ones(1,n). This method also generates nicely distributed random points on a plane. ii. To create an arbitrary camera, I used the following code snippet. [R, temp] = qr(rand(3)); if det(R) == - 1 R([2 3], :) = R([3 2],:); end; K = [rand * eye(2) rand(2,1); 0 0 1]; P1 = K * R * [eye(3) rand(3,1)]; The rotation matrix is generated by getting an orthonormal matrix from QR decomposition, and checking its determinant to ensure that it does not include a reflection. The intrinsic matrix is generated by having a random focal length value on the diagonal and a random principal point. A random translation vector is added. The same code snippet is repeated to generate another camera. iii. To project points into the cameras, I used the following script: iv. x1 = P1 * X; x1 = x1 ./ [x1(3,:)' * ones(1,3)]';

The error for a particular run comes out to be 3.0048e- 15 , which is practically zero. Since the whole script is written in a generic fashion, I can run it several times to compute the error. I ran this script 1000 times. The average error that I got was 3.0353e- 09 , with max as 1.2128e- 06 and min as 5.5584e- 16. It turns out that most of the time, the error is very low (median 4.3848e- 14 ), but a few times, the error comes out to be high, so the mean is relatively high. Nevertheless, even in the worst case, the error is of the order of 1e- 06 , which shows that the points are indeed representable by a homography. The plot of the error graph is given below for 1000 runs. To investigate what causes the error to be abnormally high in some cases, I put a conditional break-­‐point, to pause the code when error is greater than 1e-­‐08. The next time I ran the code, sure enough, I hit the break-­‐point on 98th^ iteration, with an error of 4.3777e-­‐08. Upon investigation, it was revealed that in this case, the points came to be mapped almost to a line. The SVD of H showed that the three singular values were 8.06, 0.42, 0.0046. With the third value being about 1000 times smaller than the first value, the matrix is ill conditioned. Since I chose everything randomly, such a case can occur, which yields larger error than expected. However, as shown above, this case occurs infrequently.
